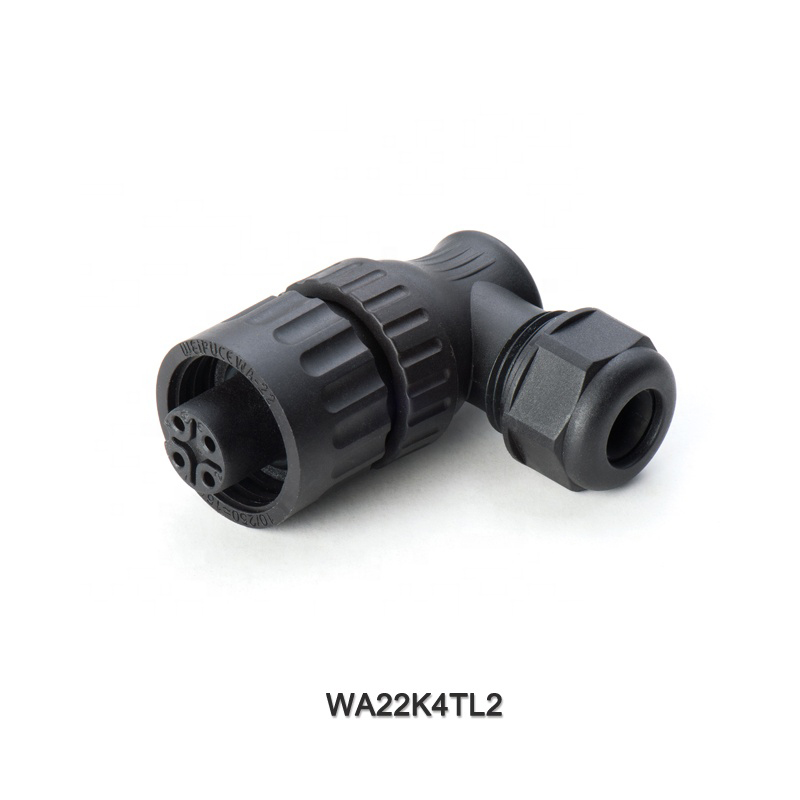

WA22K4TL2 3+PE female cable connector with angled back shell,screw termination

Short Description:


Product Detail

Product Tags

WA22K4TL2



Material and spec

Spec

sf

 ht

Number of contact

3+PE

6+PE

Termination

Screw

Solder

Wire size

Max2.5mm²/AWG14

Max0.75mm²/AWG18

Rated voltage(V)

400V

250V

Rated current(A)

16A

10A

Contact diameter

 2×4

 1.5×7

Shell material

Nylon66, fire resistance: V-0

Contact material

Brass with gold plating

Cable outlet diameter

6,8,10mm

IP rating

IP67

Mating cycle

>500

Temperture range

-40~+85℃

Insulation resistance MΩ

2000

Test voltage(AC.V)1 min

2000V

Contact resistance MΩ

2.5
