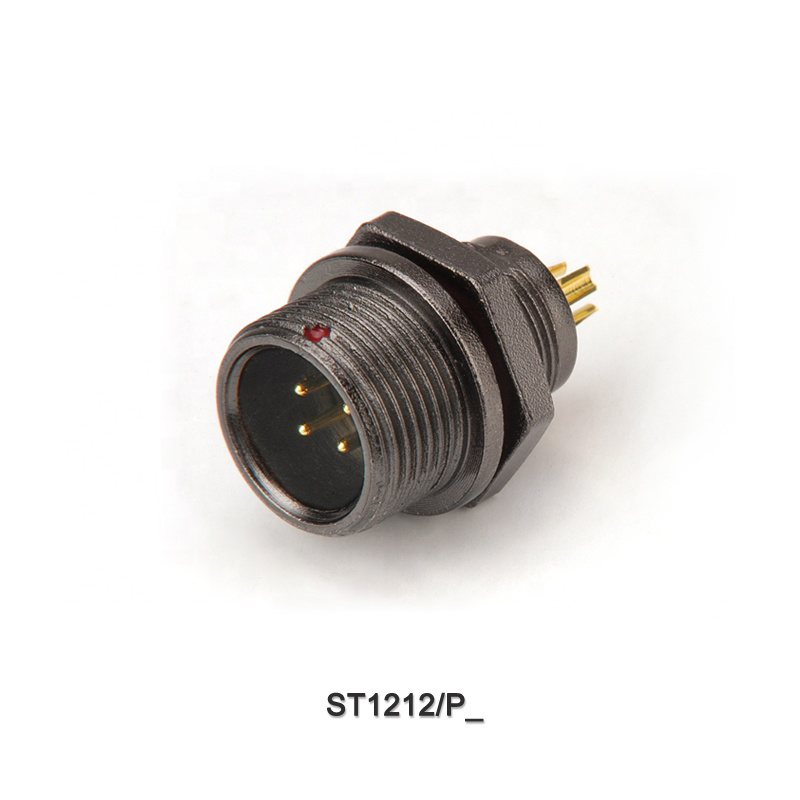

Weipu IP67 waterproof electrical connector ST1212/P Rear-nut mount male socket for plugs

Short Description:

Rear-nut mount Mate with ST1210


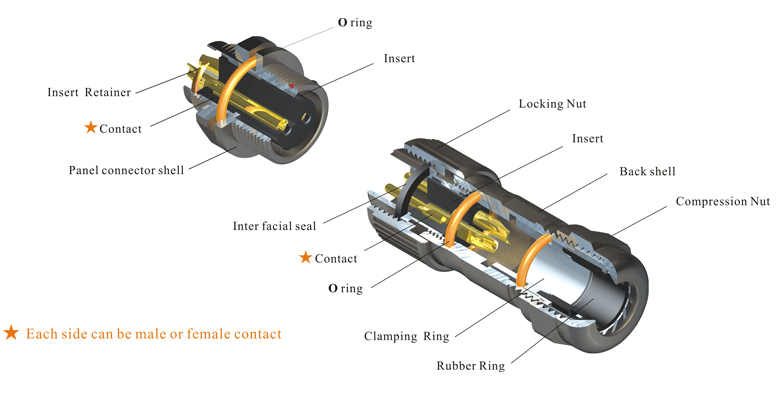

Product Detail

Product Tags

ST1212P



Material and spec

Material Metal
IP Rating IP67
Coupling Type Threaded coupling
Shell Zinc alloy with black nickel plating
Insert material PPS max temperature 260℃fire resistance:V-0
Contact material Brass with gold plating
Termination Solder
Cable outer diameter range 5-8mm
Mating cycle > 500
Temperature range -40℃~+85℃
Insulation resistance MΩ 2000

Contact arrangement and spec for solder termination

Number of contact

2

3

4

5

6

7

9

Male contact face view

as

 sdv

 fd

ht (1)

 ht (2)

 ht (3)

 ht (4)

Rated current (A)

13A

13A

5A

5A

5A

5A

3A

Contact diameter

1.6×2

1.6×3

 1×4

1×5

 1×6

 1×7

 0.7×9

Rated voltage(AC.V)

250V

250V

200V

180V

125V

125V

125V

Test voltage(AC.V)1 min

1500V

1500V

1500V

1000V

1000V

1000V

1000V

Contact resistance mΩ

2

2

5

5

5

5

10

Wire size mm² /AWG

≤2/14

≤2/14

≤0.785/18

≤0.785/18

≤0.785/18

≤0.785/18

≤0.785/1
