![2](https://i4353.quanqiusou.cn/uploads/8d9d4c2f17.png)
![rt (3)](https://i4353.quanqiusou.cn/uploads/c77b763d3.png)
3+PE male cable connector
With angled back shell
WA22T4TL2
![3](https://i4353.quanqiusou.cn/uploads/7e4b5ce213.png)
![5](https://i4353.quanqiusou.cn/uploads/7fbbce231.png)
![gg1 (5)](https://i4353.quanqiusou.cn/uploads/69a59f23.png)

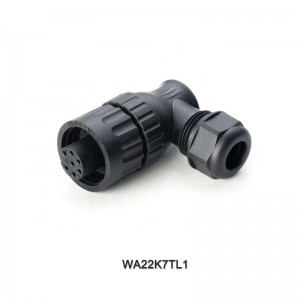

6+PE male cable connector
WA22K7TL1
![6](https://i4353.quanqiusou.cn/uploads/1c5a880f.png)
![a](https://i4353.quanqiusou.cn/uploads/b9c0f1b61.png)
WA22G1
![d](https://i4353.quanqiusou.cn/uploads/910d7501.png)
WA22G2
Material and spec
Spec |
|
|
Number of contact |
3+PE |
6+PE |
Termination |
Screw |
Solder |
Wire size |
Max2.5mm²/AWG14 |
Max0.75mm²/AWG18 |
Rated voltage(V) |
400V |
250V |
Rated current(A) |
16A |
10A |
Contact diameter |
∅ 2×4 |
∅ 1.5×7 |
Shell material |
Nylon66, fire resistance: V-0 |
|
Contact material |
Brass with gold plating |
|
Cable outlet diameter |
6,8,10mm |
|
IP rating |
IP67 |
|
Mating cycle |
>500 |
|
Temperture range |
-40~+85℃ |
|
Insulation resistance MΩ |
2000 |
|
Test voltage(AC.V)1 min |
2000V |
|
Contact resistance MΩ |
2.5 |
