Weipu Crimp Contacts

Short Description:


Product Detail

Product Tags

s

Crimp tool
For crimping male/female contacts  image7

Part number

Crimping wire range

CT-P20/28

0.08-0.52mm2 AWG 28-20

CTW-0.14/4

0.14-4mm2 AWG 25-11

CT-4/10

4-10mm AWG 11-7

8A Crimp contact
※Contact diameter:∅ 1※Material: Brass with gold platingimage1  image2 8A Male crimp contact

Wire size

Stripping length

Male crimp contact p/n

Crimping tool p/n

0.25-1.0mm2

AWG 23-17

4.0mm

YJ1-20.7-1.0AU

CT-W26/12

 image3 8A Female crimp contact

Wire size

Stripping length

Male crimp contact p/n

Crimping tool p/n

0.25-1.0mm2

AWG 23-17

4.0mm

YK1-19.2-1.0AU

CT-W26/12

28A Crimp contact
※Contact diameter:∅2※Material: Brass with gold plating  image4  image5 28A Male crimp contact

Wire size

Stripping length

Male crimp contact p/n

Crimping tool p/n

1.0-2.5mm2

AWG 18-13

7.0mm

YJ2- -2.5AU

CT-W26/12

2.5-4.0mm2

AWG 13-12

7.0mm

Y2-24.1-4.0AU

CT-W26/12

 image6 28A Female crimp contact

Wire size

Stripping length

Male crimp contact p/n

Crimping tool p/n

1.0-2.5mm2

AWG 18-13

7.0mm

YK2- -2.5AU

CT-W26/12

2.5-4.0mm2

AWG 13-12

7.0mm

YK2-22.2-4.0AU

CT-W26/12

M23 for signal contact spec
8A Crimp contact
※Contact diameter:∅ 1

※Material: Brass with gold plating





8A Male crimp contact




Wire size

Stripping length

Male crimp contact p/n

Crimping tool p/n

0.08-0.5mm2

AWG 28-20

4.0mm

YJ1-17-0.56AU

CT-W32/20

0.56-1mm2

AWG 20-17

4.0mm

YJ1-17-1.0AU

CT-W26/12

1-1.5mm2

AWG 17-16

4.0mm

YJ1-17-1.5AU

CT-W26/12




8A Female crimp contact

Wire size

Stripping length

Male crimp contact p/n

Crimping tool p/n

0.08-0.5mm2

AWG 28-20

4.0mm

YK1-16-0.56AU

CT-W32/20

0.56-1mm2

AWG 20-17

4.0mm

YK1-16-1.0AU

CT-W26/12

1-1.5mm2

AWG 17-16

4.0mm

YK1-16-1.5AU

CT-W26/12

10A Crimp contact
※Contact diameter:∅1.5※Material: Brass with gold plating



  10A Male crimp contact
 image8  image11

Wire size

Stripping length

Male crimp contact p/n

Crimping tool p/n

0.14-0.5mm2

AWG 26-20

4.0mm

YJ1.5-16.6-0.56AU

CT-W26/12

0.5-1mm2

AWG 20-17

4.0mm

YJ1.5-16.6-1.0AU

CT-W26/12


 image12 10A Female crimp contact

Wire size

Stripping length

Male crimp contact p/n

Crimping tool p/n

0.14-0.5mm2

AWG 26-20

4.0mm

YK1.5-16.3-0.56AU

CT-W26/12

0.5-1mm2

AWG 20-17

4.0mm

YK1.5-16.3-1.0AU

CT-W26/12

20A Crimp contact
※Contact diameter:∅2※Material: Brass with gold plating



  20A Male crimp contact
image13   image14

Wire size

Stripping length

Male crimp contact p/n

Crimping tool p/n

0.75-2.5mm2

AWG 18-13

3.5mm

YJ2-16.8-2.5AU

CT-W26/12

   image15 20A Female crimp contact

Wire size

Stripping length

Male crimp contact p/n

Crimping tool p/n

0.75-2.5mm2

AWG 18-13

3.5mm

YK2-16.6-2.5AU

CT-W26/12



















Removal tool
For taking out male/female contacts  image34

Part number

Removal range

RT-1.0

5A Male / Female crimp contact

RT-1.5

10A Male / Female crimp contact

RT-2.5

25A Male / Female crimp contact

RT-3.5

50A Male / Female crimp contact

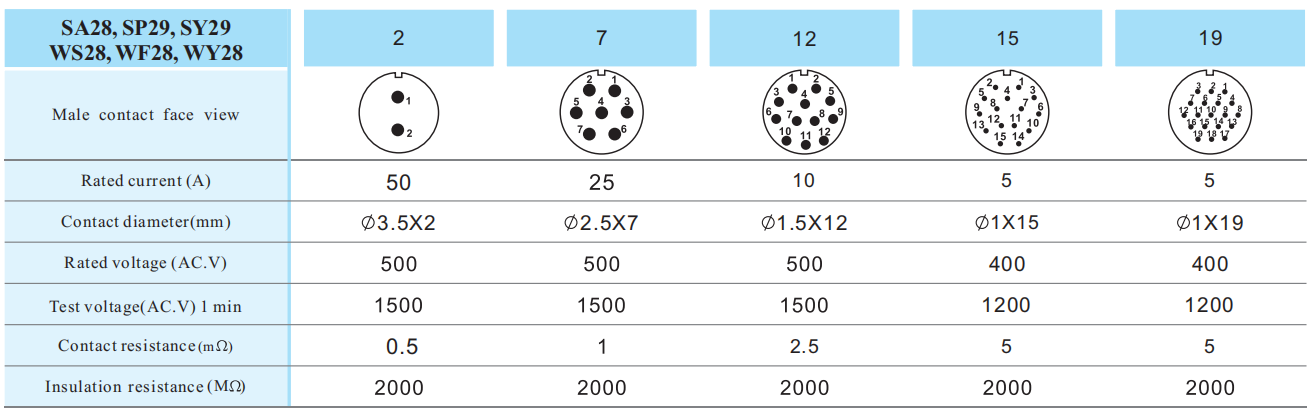

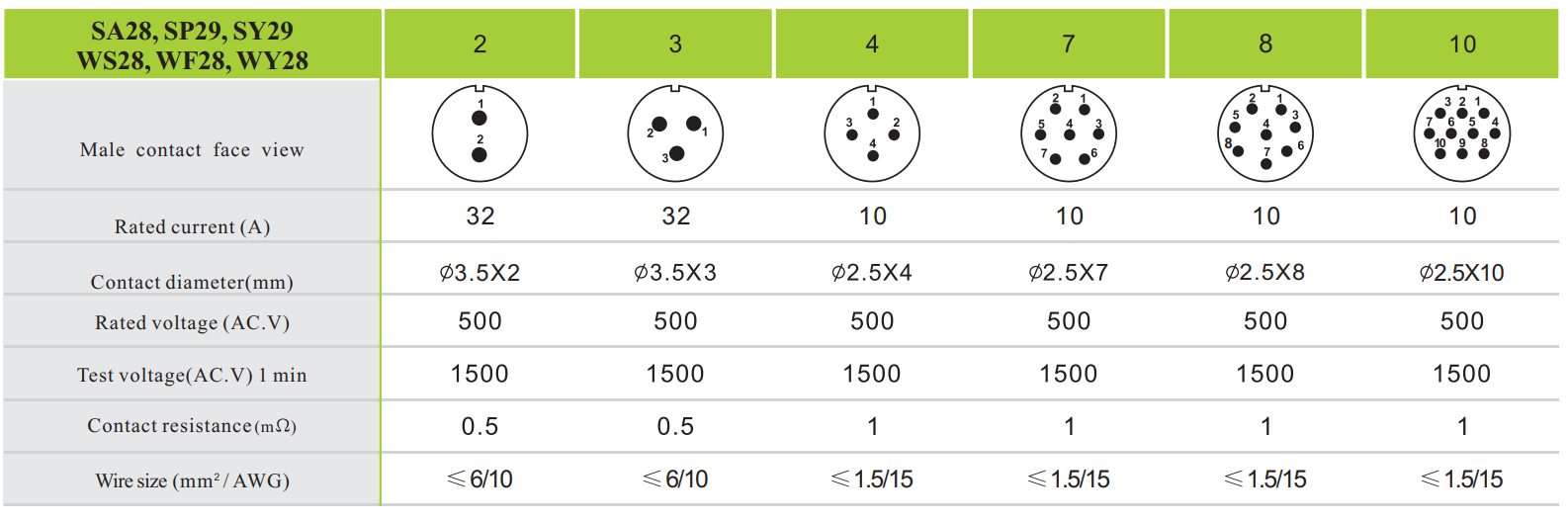

5A Crimp contact
※Contact diameter: ∅1※Material: Brass with gold plating※Contact resistance: 5mΩ


5A Male crimp contact

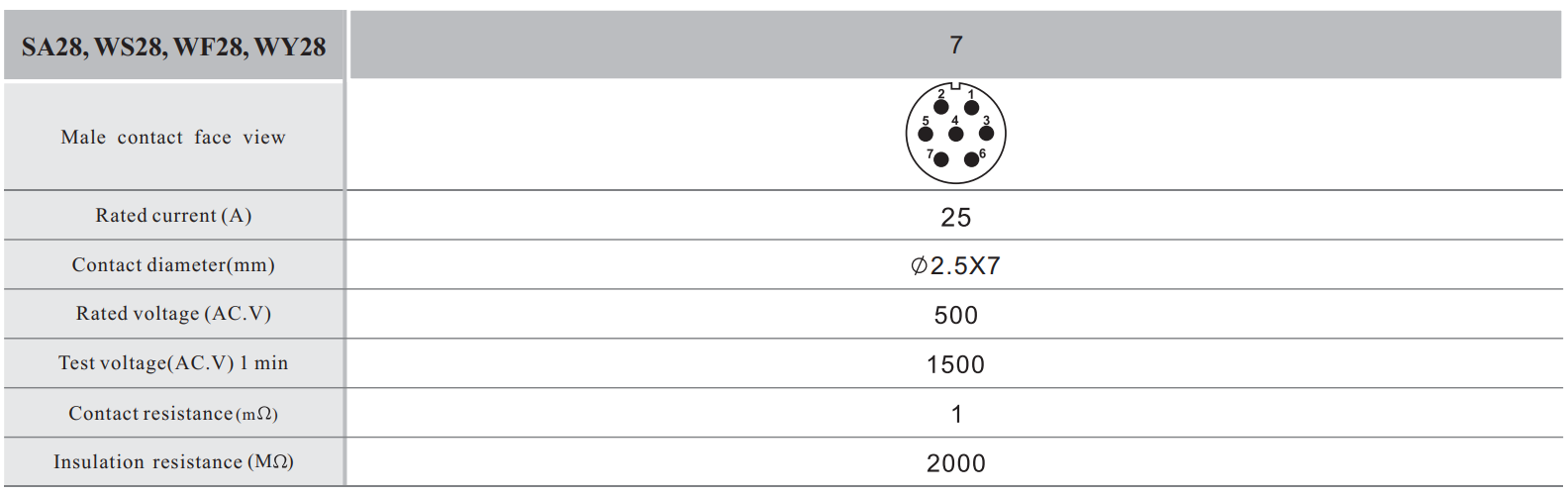

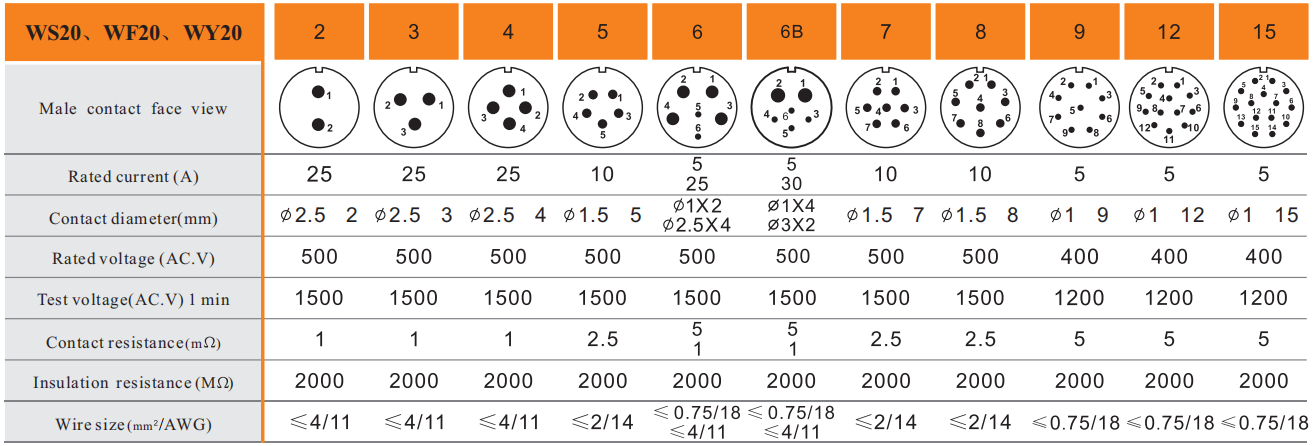

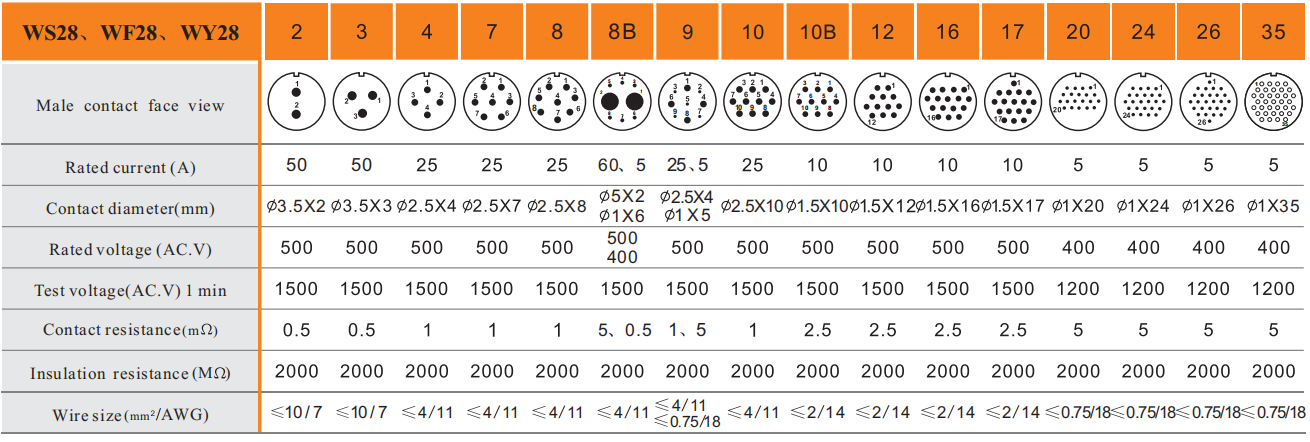

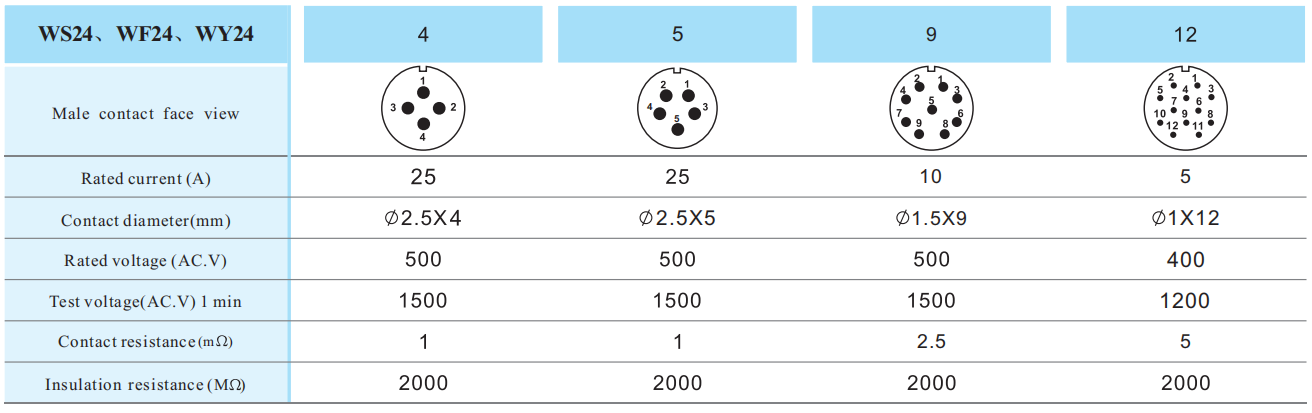

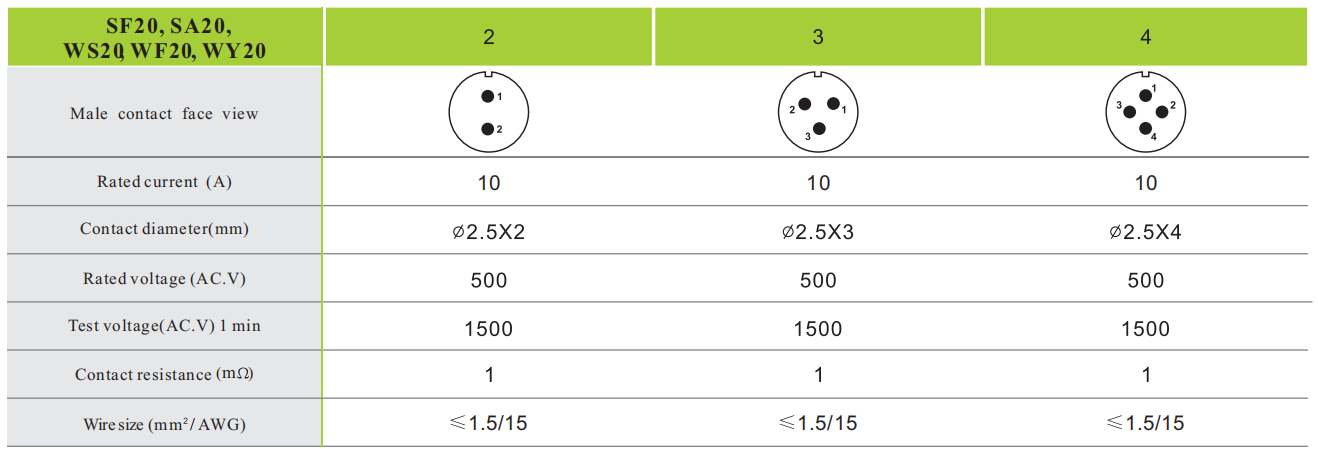

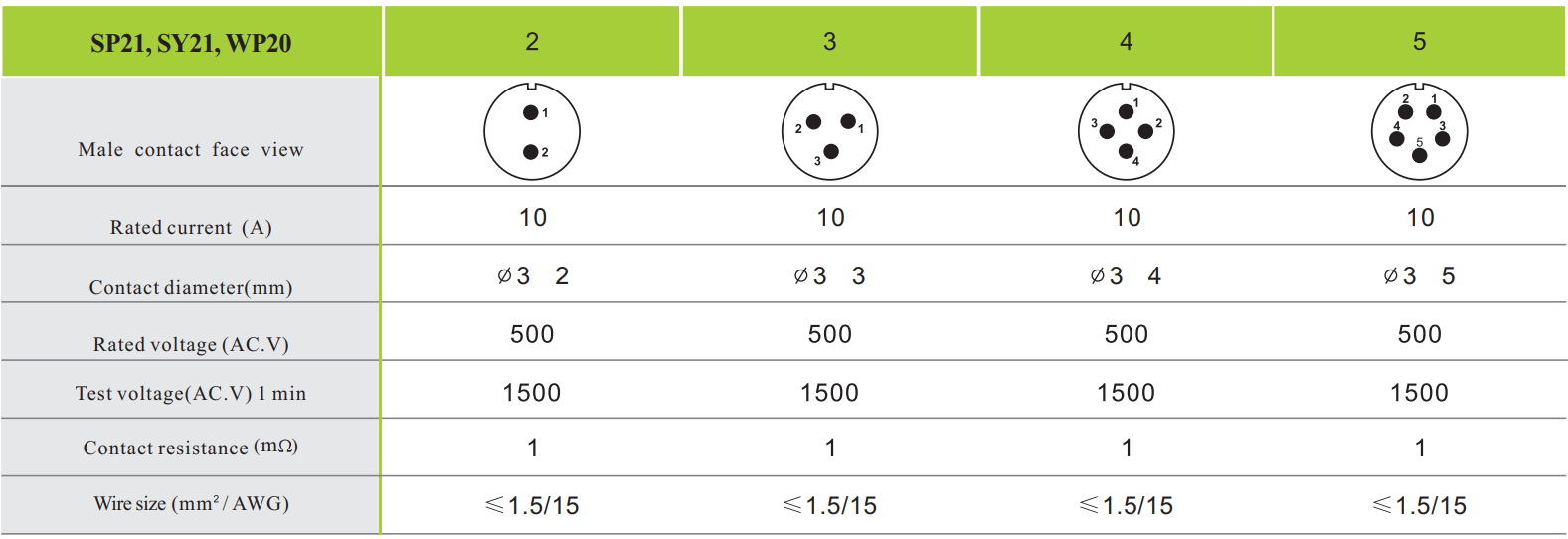

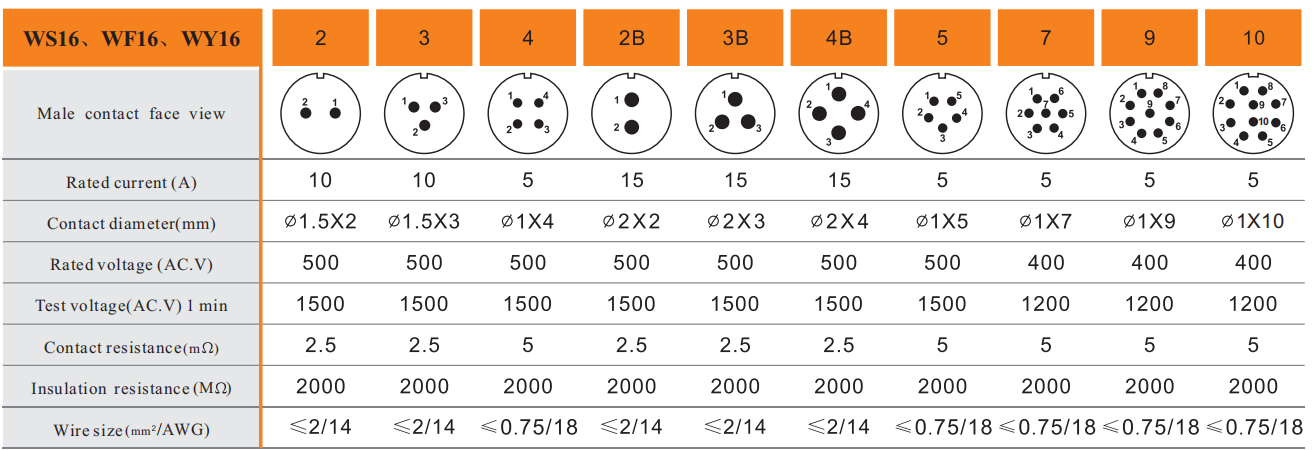

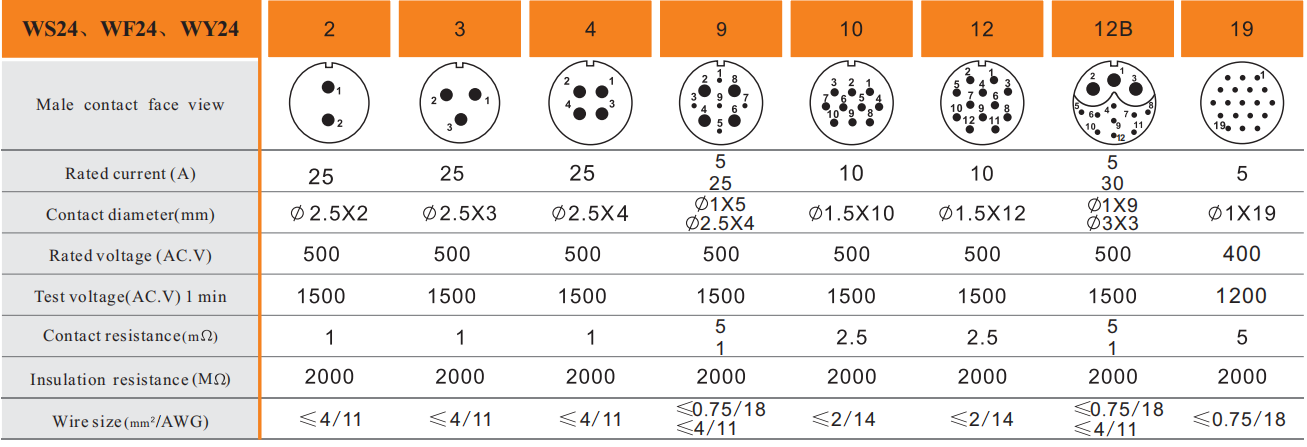

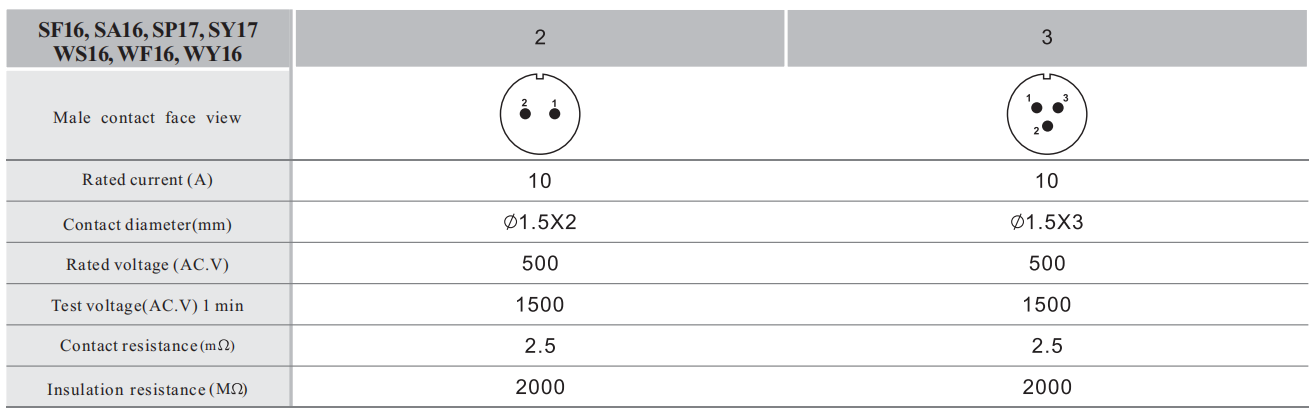

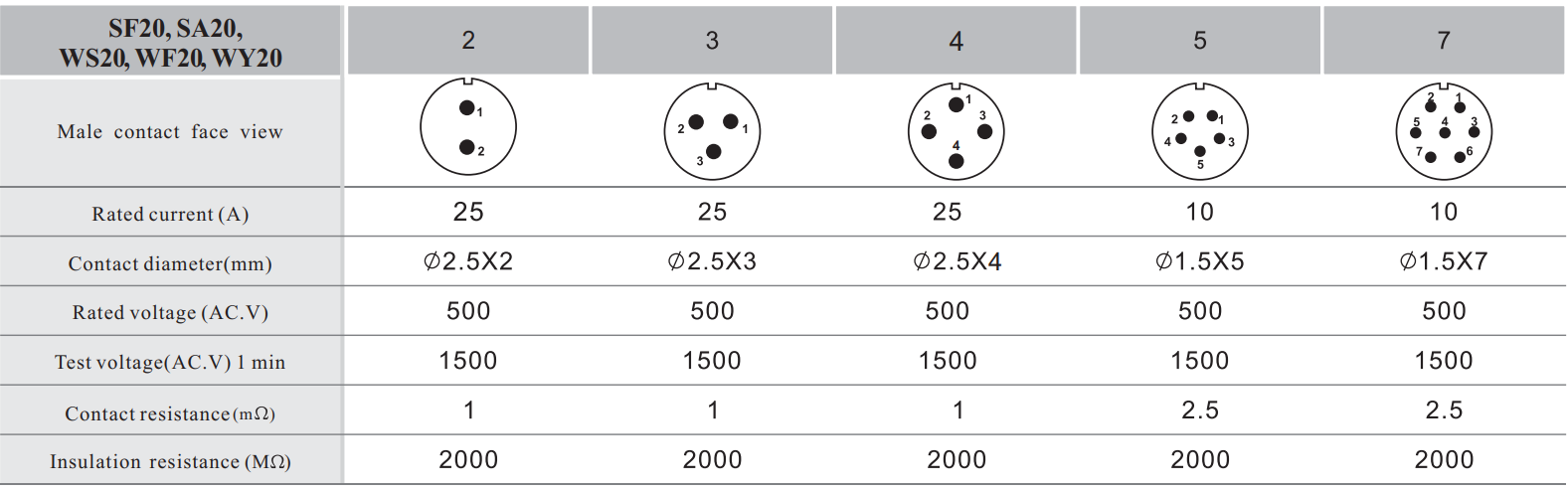

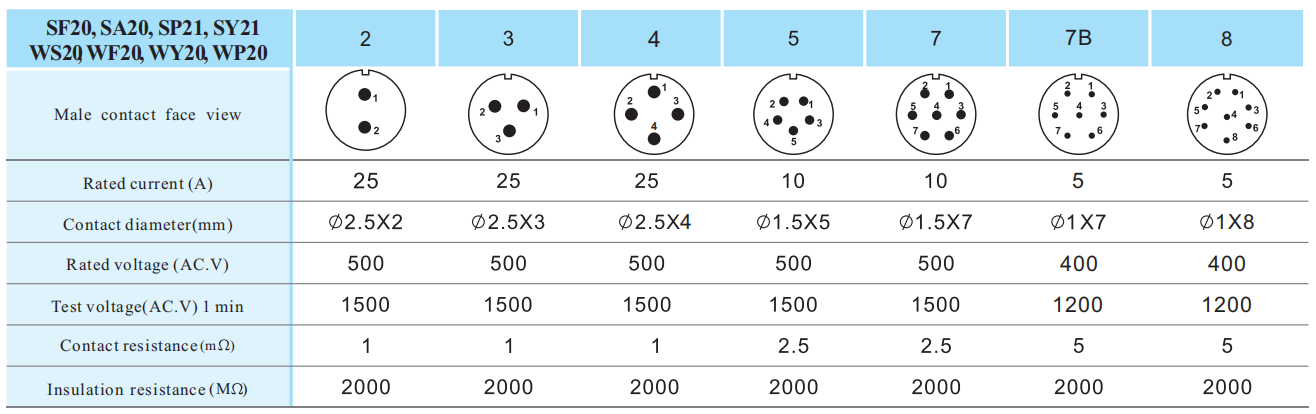

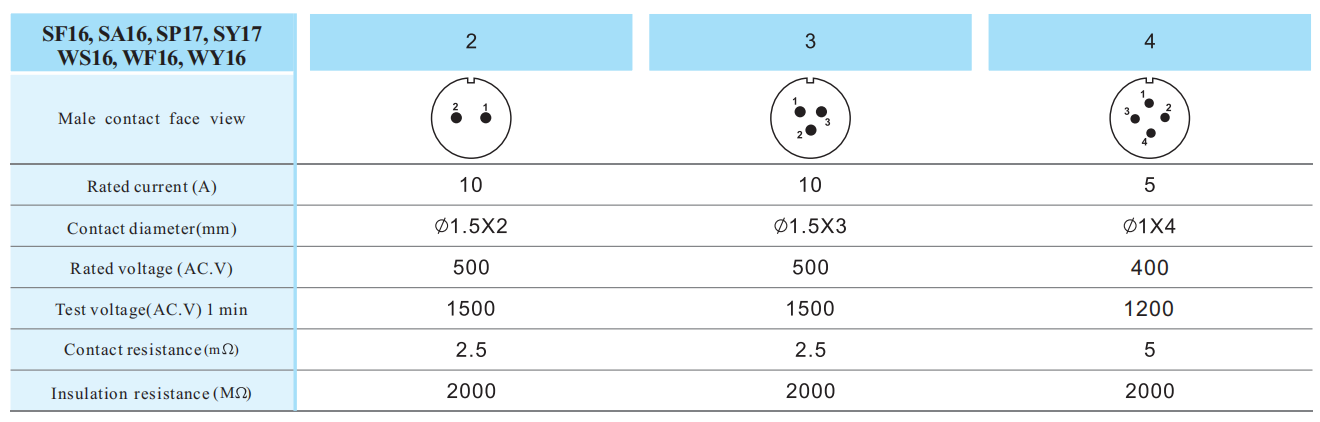

For SF, SA, SP, SY, WP, WS WF WY16-28

Wire size

Stripping length

Male crimp contact p/n

Crimping tool p/n

Removal tool p/n

0.20-0.52mm2

AWG 24-20

5.5mm

UPunching YJ1-17-0.52AU-C  CNC YJ1-17-0.52AU

CT-P20/28

RT-1.0



5A Female crimp contact

For SF, SA, SP, SY, WP, WS WF WY16~28



0.20-0.52mm2

AWG 24-20

5.5mm

UPunching Yk1-17-0.52AU-C

CNC Yk1-17-0.52AU

CT-P20/28

RT-1.0

10A Crimp contact
※Contact diameter: ∅1.5※Material: Brass with gold plating
※Contact resistance:2.5mΩ





10A Male crimp contact

For SF, SA, SP, SY, WP, WS WF WY16-28





Wire size

Stripping length

Male crimp contact p/n

Crimping tool p/n

Removal tool p/n

0.14-0.37mm2

AWG 26-22

8mm

YJ1.5-21.4-0.37AU

CT-P20/28

RT-1.5

0.5mm2

AWG 20

8mm

YJ1.5-21.4-0.5AU

CT-P20/28

RT-1.5

0.75-1.0mm2

AWG 18

8mm

YJ1.5-21.4-1.0AU

CTW-0.14/4

RT-1.5

1.5mm2

AWG 16

8mm

YJ1.5-21.4-1.5AU

CTW-0.14/4

RT-1.5

2.5mm2

AWG 14

8mm

YJ1.5-21.4-2.5AU

CTW-0.14/4

RT-1.5

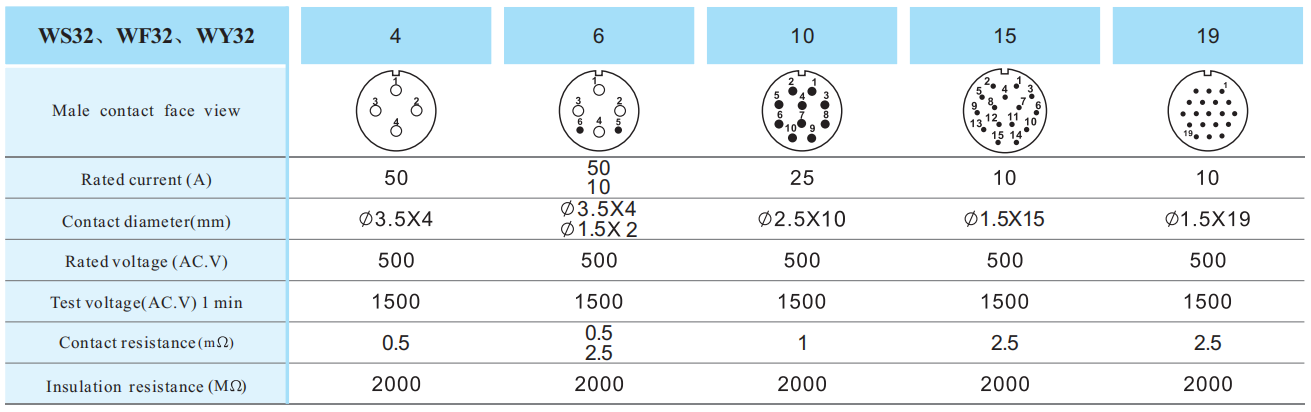

10A Male crimp contact

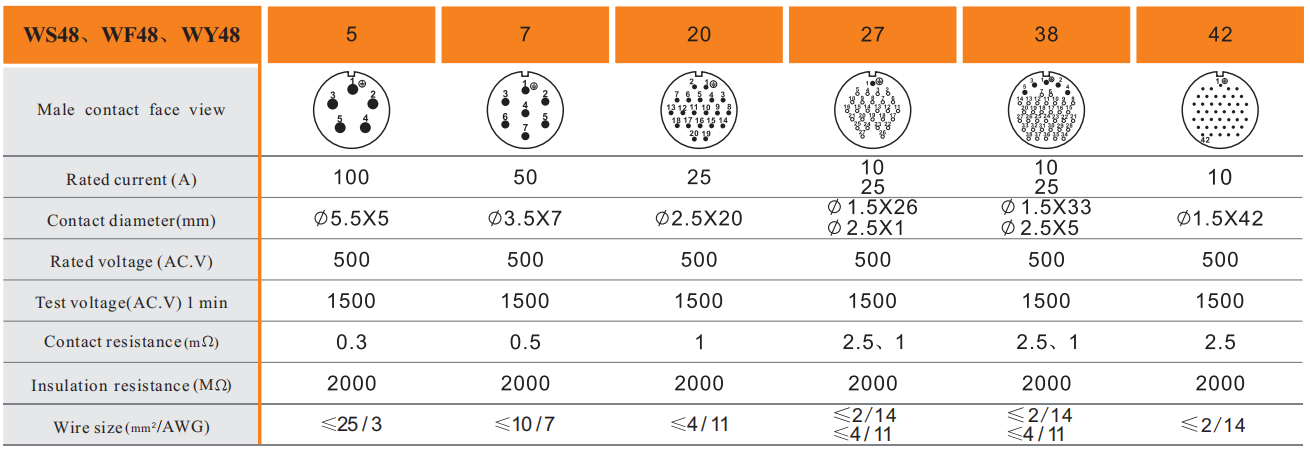

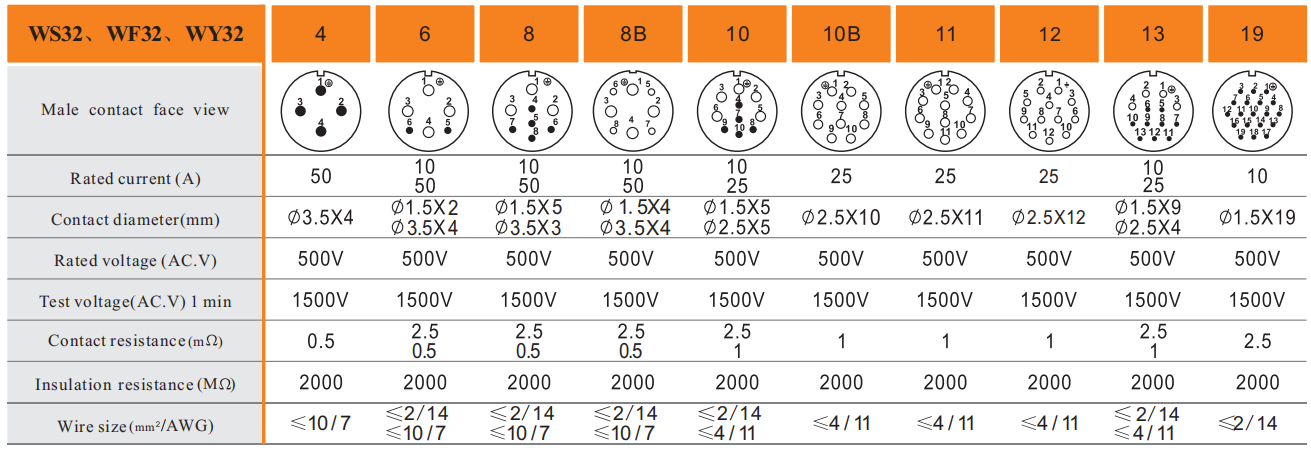

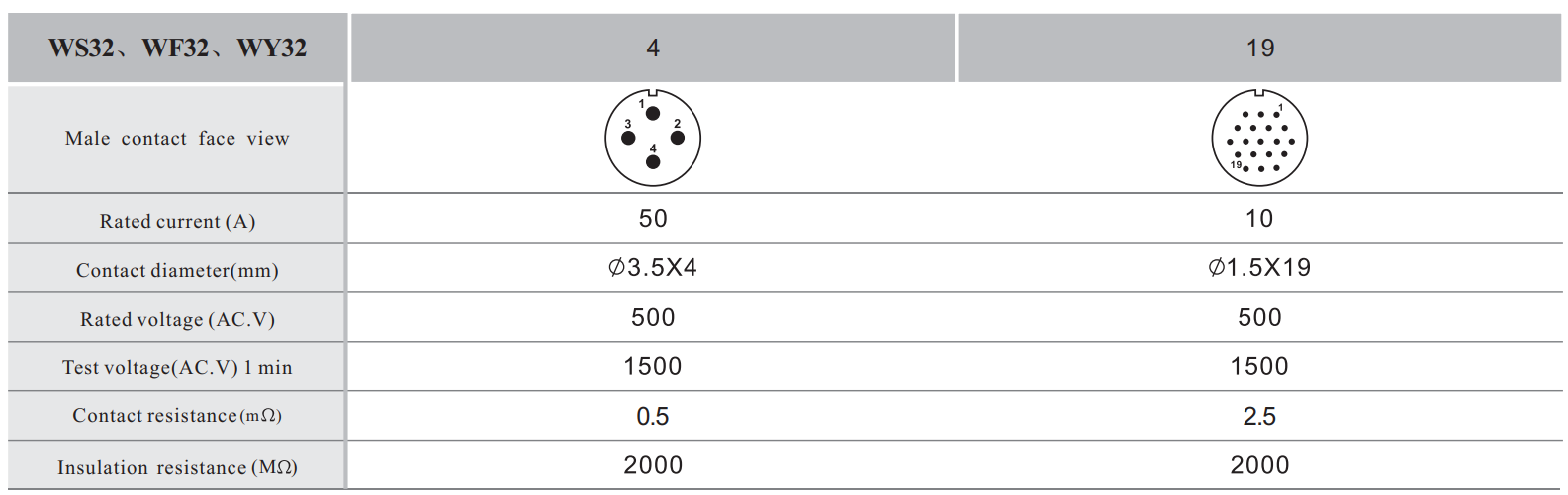

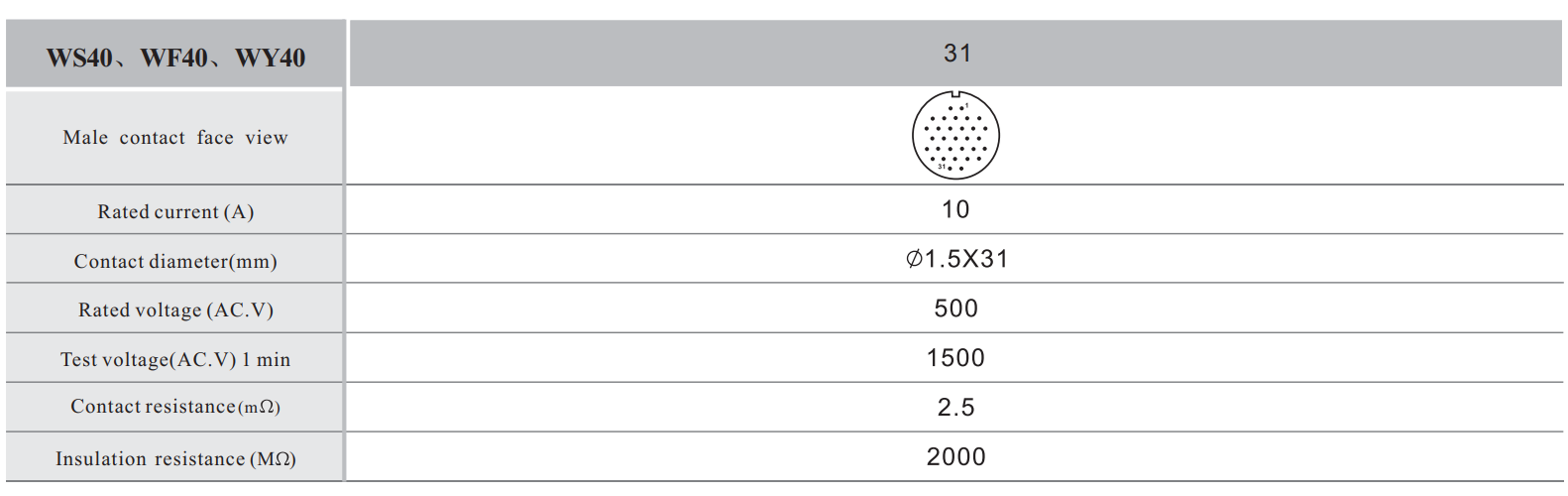

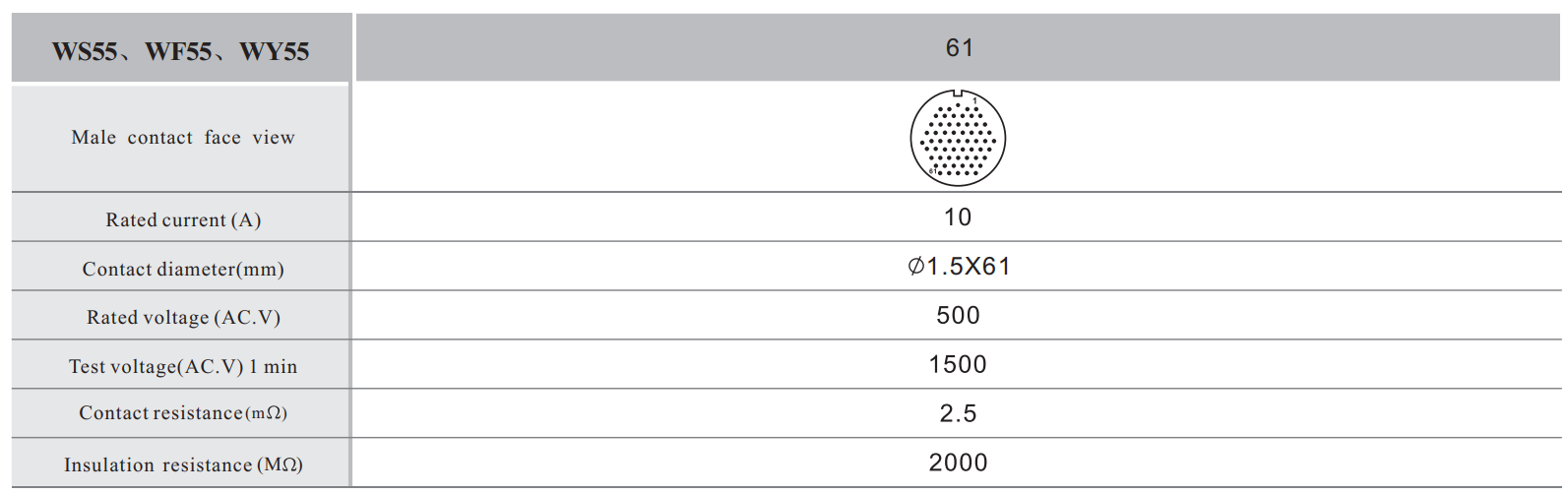

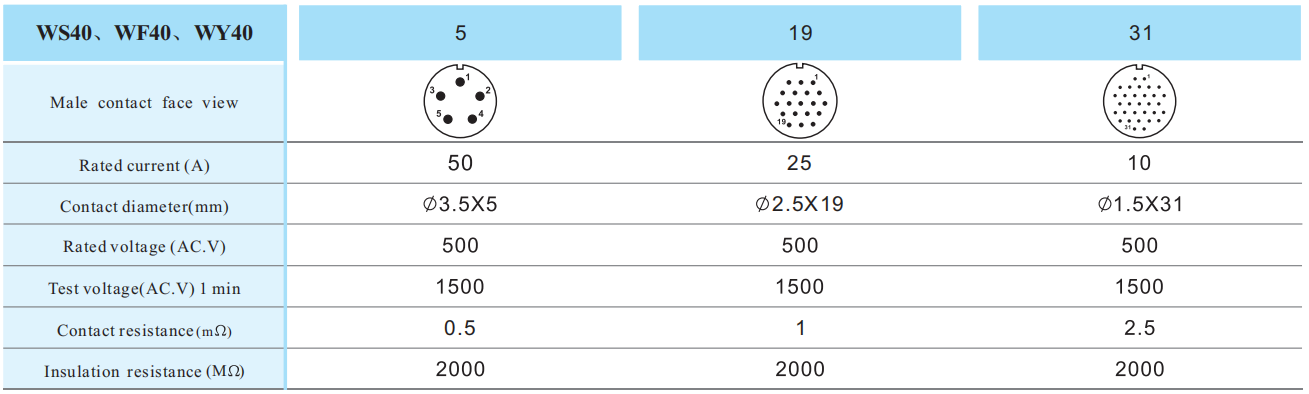

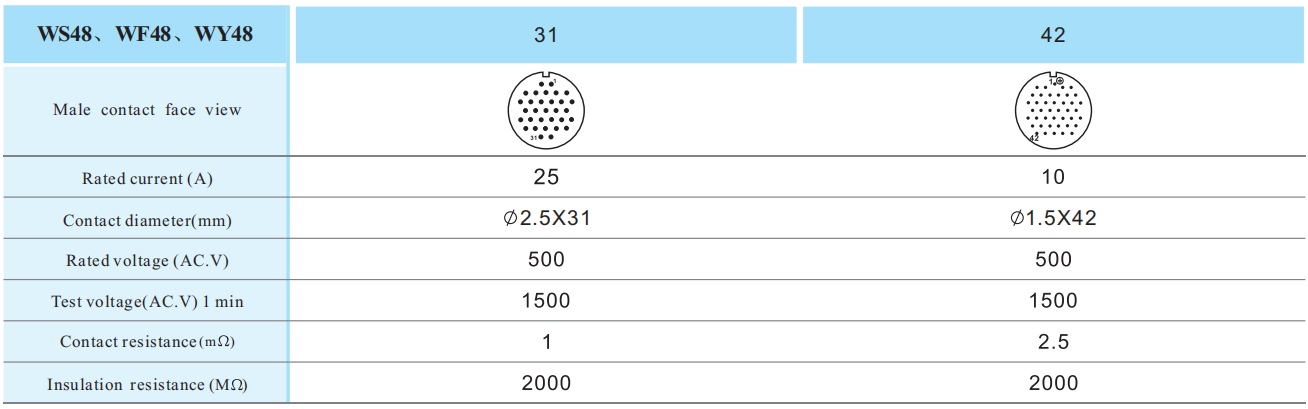

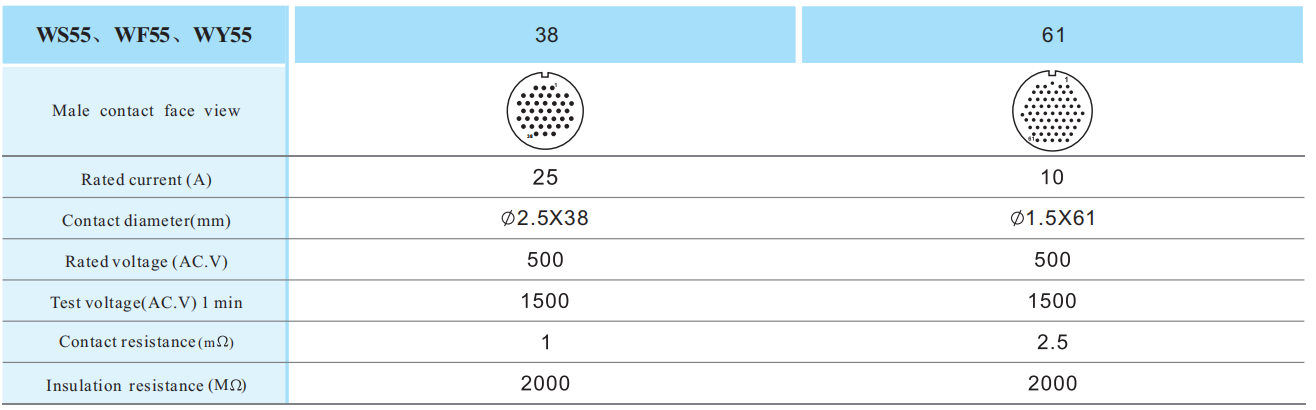

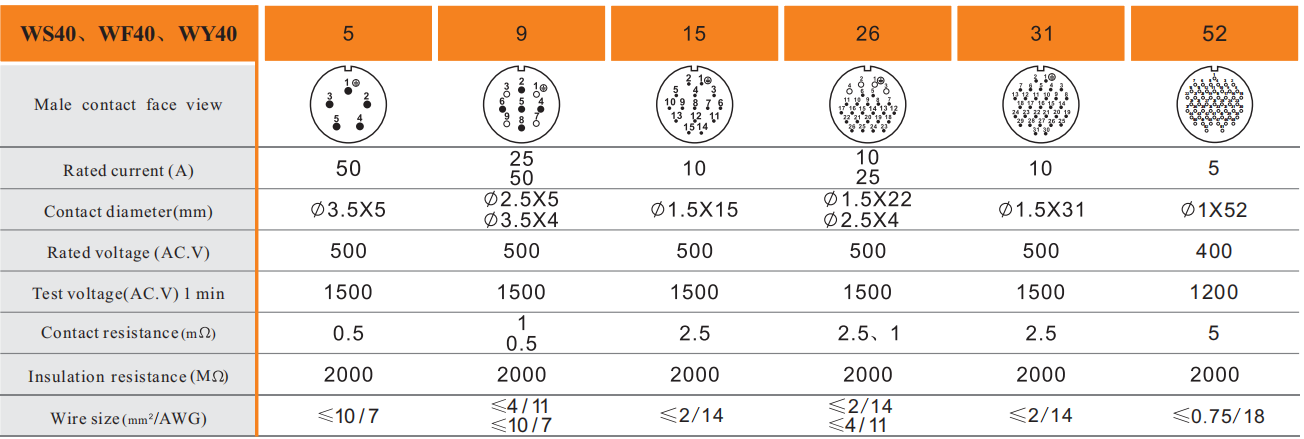

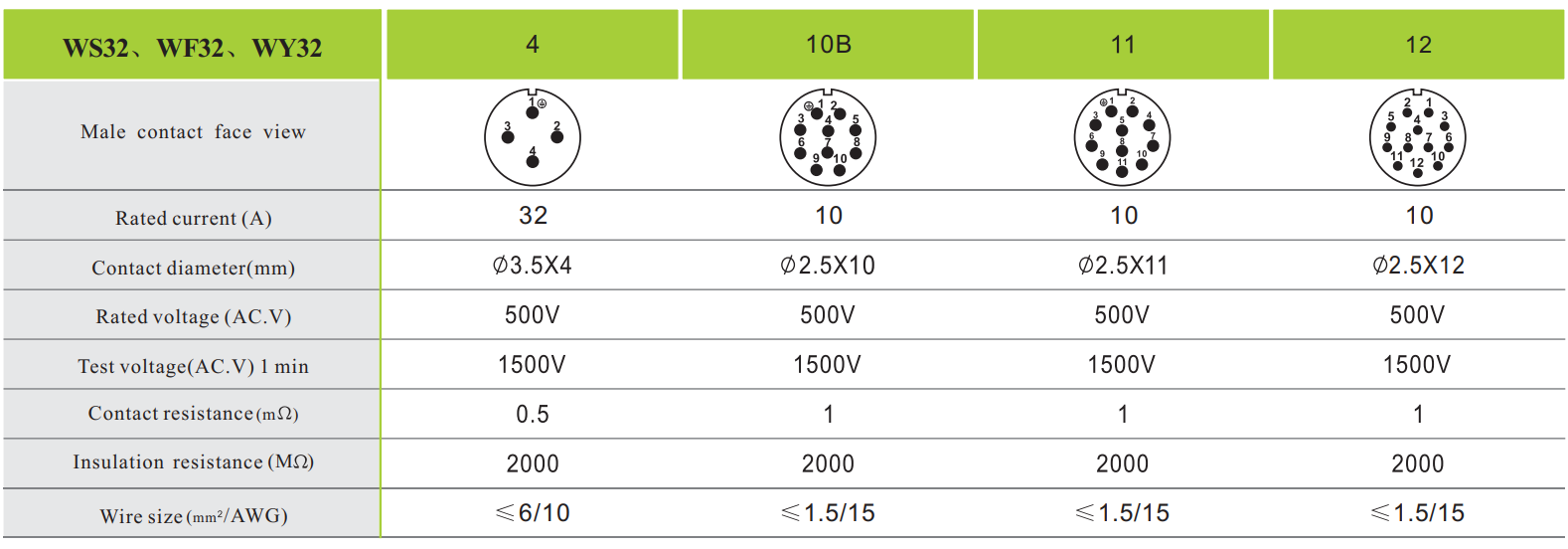

For WS WF WY32-55

Wire size

Stripping length

Male crimp contact p/n

Crimping tool p/n

Removal tool p/n


0.14-0.37mm2

AWG 26-22

8mm

YJ1.5-23.6-0.37AU

CT-P20/28

RT-1.5

0.5mm2

AWG 20

8mm

YJ1.5-23.6-0.5AU

CT-P20/28

RT-1.5

0.75-1.0mm2

AWG 18

8mm

YJ1.5-23.6-1.0AU

CTW-0.14/4

RT-1.5

1.5mm2

AWG 16

8mm

YJ1.5-23.6-1.5AU

CTW-0.14/4

RT-1.5

2.5mm2

AWG 14

8mm

YJ1.5-23.6-2.5AU

CTW-0.14/4

RT-1.5

10A Male crimp contact

For SF, SA, SP, SY, WP, WS WF WY16-28

Wire size

Stripping length

Male crimp contact p/n

Crimping tool p/n

Removal tool p/n

0.14-0.37mm2

AWG 26-22

8mm

YK1.5-20.4-0.37AU

CT-P20/28

RT-1.5


0.5mm2

AWG 20

8mm

YK1.5-20.4-0.5AU

CT-P20/28

RT-1.5

0.75-1.0mm2

AWG 18

8mm

YK1.5-20.4-1.0AU

CTW-0.14/4

RT-1.5

1.5mm2

AWG 16

8mm

YK1.5-20.4-1.5AU

CTW-0.14/4

RT-1.5

2.5mm2

AWG 14

8mm

YK1.5-20.4-2.5AU

CTW-0.14/4

RT-1.5

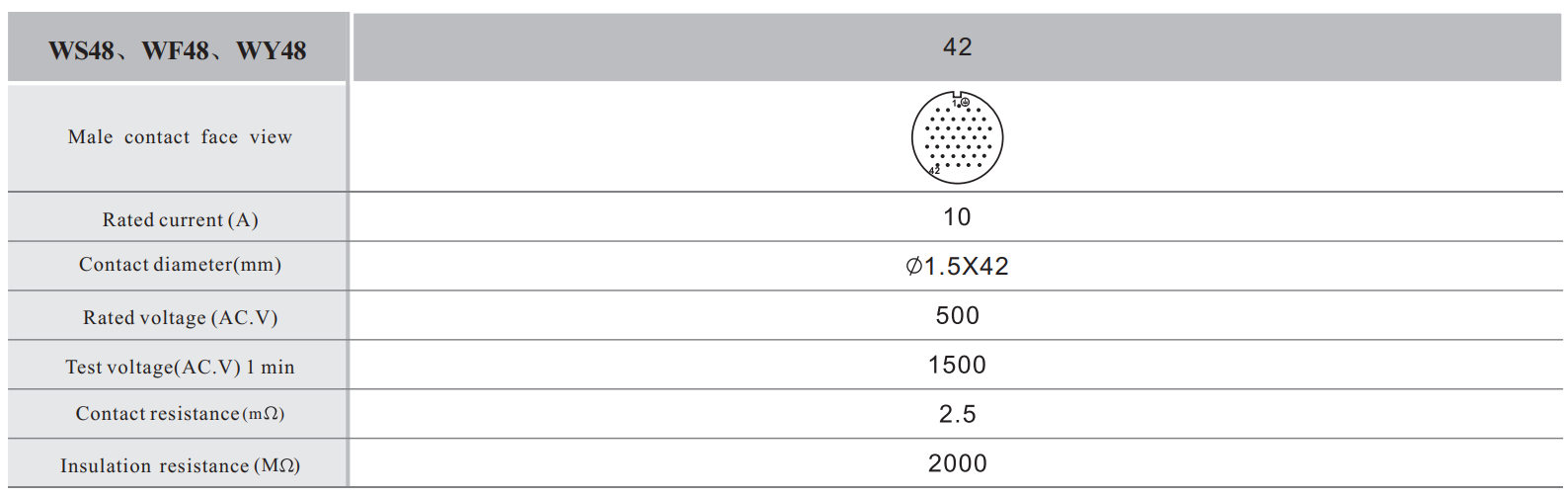

10A Male crimp contact

For WS WF WY32-55


Wire size

Stripping length

Male crimp contact p/n

Crimping tool p/n

Removal tool p/n

0.14-0.37mm2

AWG 26-22

8mm

YK1.5-22.6-0.37AU

CT-P20/28

RT-1.5

0.5mm2

AWG 20

8mm

YK1.5-22.6-0.5AU

CT-P20/28

RT-1.5

0.75-1.0mm2

AWG 18

8mm

YK1.5-22.6-1.0AU

CTW-0.14/4

RT-1.5

1.5mm2

AWG 16

8mm

YK1.5-22.6-1.5AU

CTW-0.14/4

RT-1.5

2.5mm2

AWG 14

8mm

YK1.5-22.6-2.5AU

CTW-0.14/4

RT-1.5

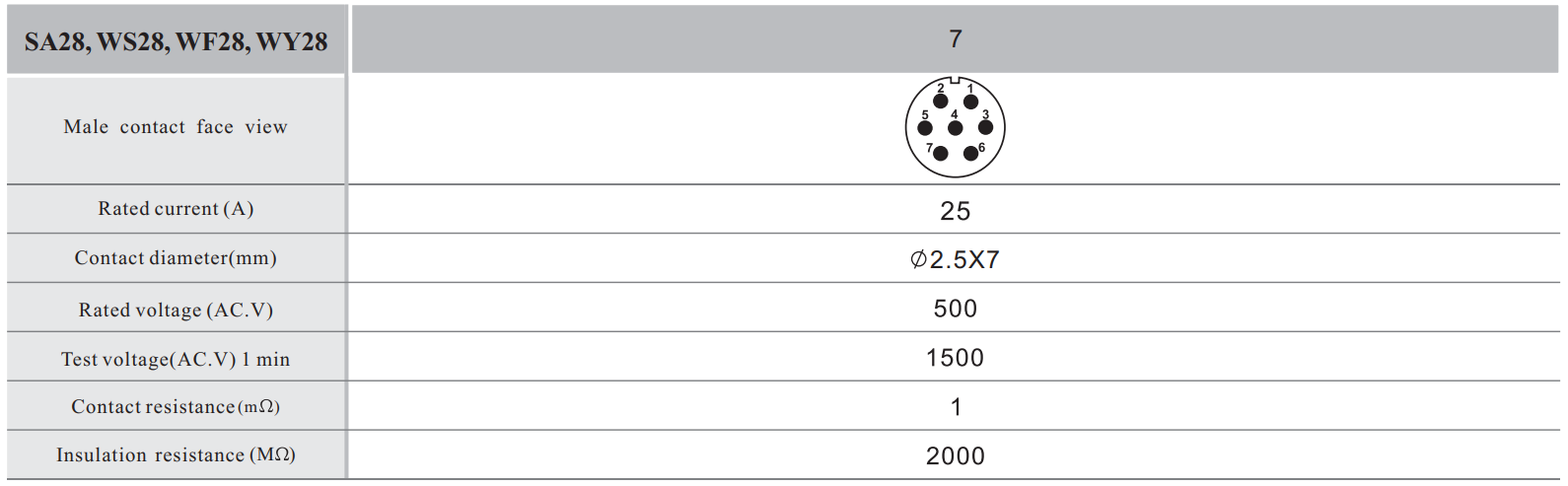

25A Crimp contact
※Contact diameter: ∅2.5※Material: Brass with gold plating
※Contact resistance:1mΩ

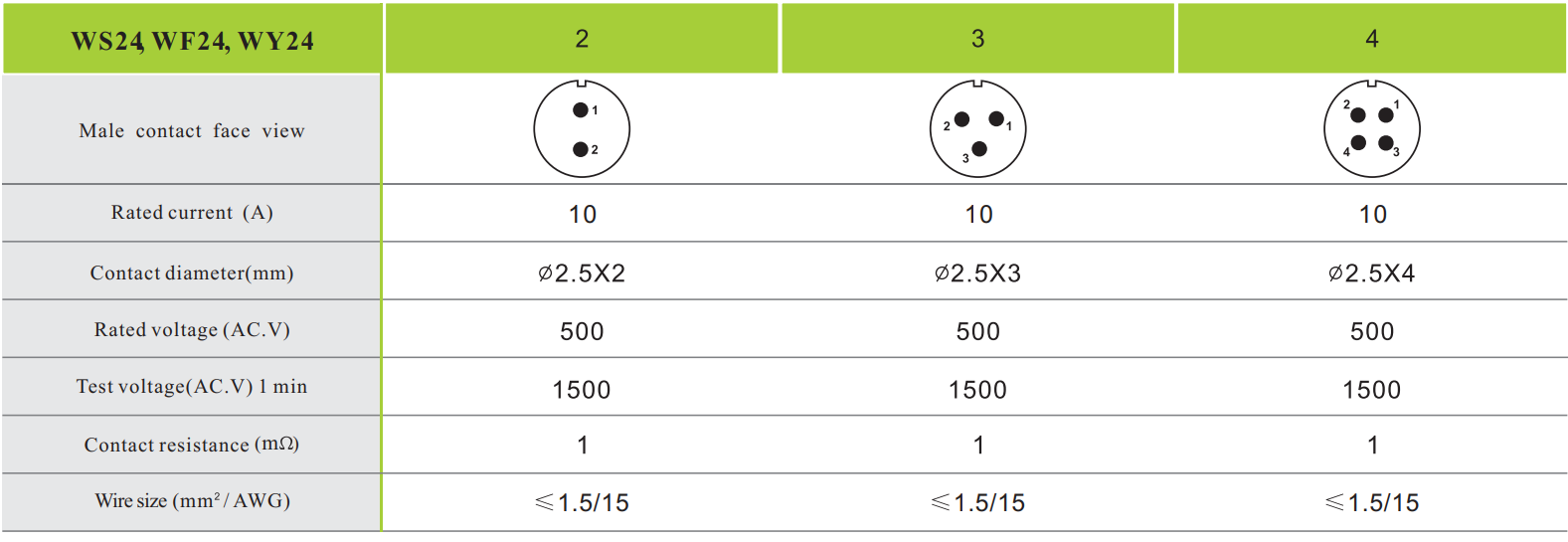

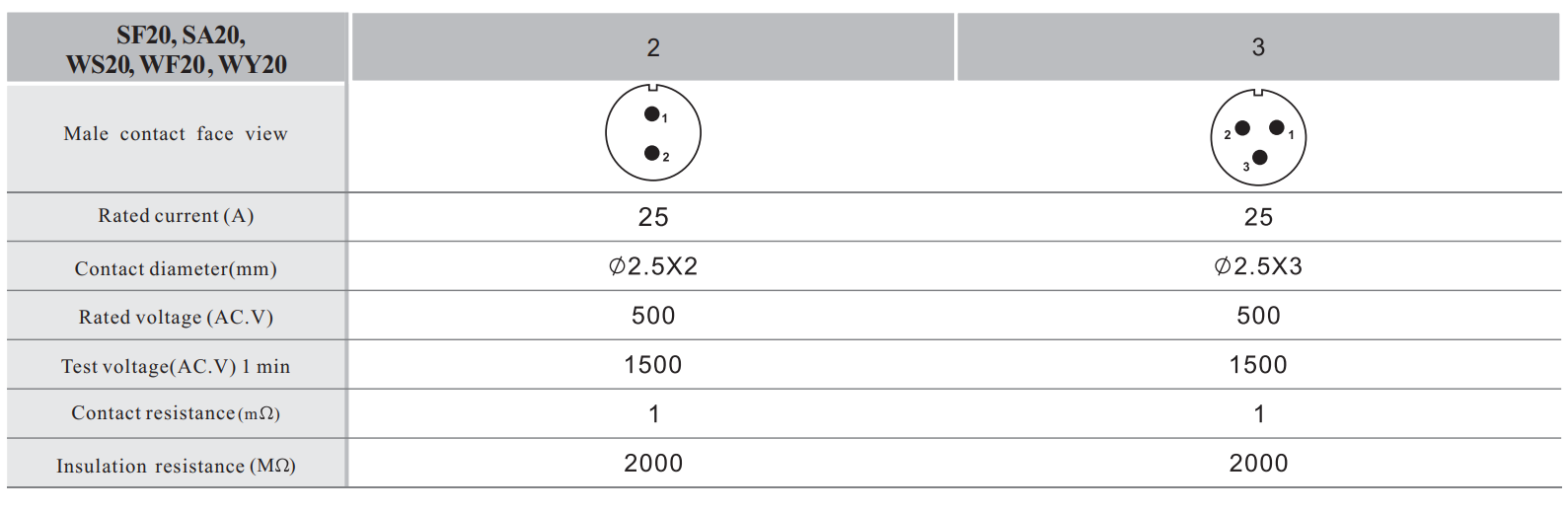

  25A Male crimp contact

For SF, SA, SP, SY, WP, WS WF WY16-28

 image44 image49  image45

Wire size

Stripping length

Male crimp contact p/n

Crimping tool p/n

Removal tool p/n

0.75-1.0mm2

AWG 18

8mm

YJ2.5-21.4-1.0AU

CTW-0.14/4

RT-2.5

1.5mm2

AWG 16

8mm

YJ2.5-21.4-1.5AU

CTW-0.14/4

RT-2.5

2.5mm2

AWG 14

8mm

YJ2.5-21.4-2.5AU

CTW-0.14/4

RT-2.5

4.0mm2

AWG 12

8mm

YJ2.5-21.4-4.0AU

CTW-0.14/4

CT-4/10

RT-2.5

 image46 25A Male crimp contact

For WS WF WY32-55

Wire size

Stripping length

Male crimp contact p/n

Crimping tool p/n

Removal tool p/n

0.75-1.0mm2

AWG 18

8mm

YJ2.5-23.6-1.0AU

CTW-0.14/4

RT-2.5

1.5mm2

AWG 16

8mm

YJ2.5-23.6-1.5AU

CTW-0.14/4

RT-2.5

2.5mm2

AWG 14

8mm

YJ2.5-23.6-2.5AU

CTW-0.14/4

RT-2.5

4.0mm2

AWG 12

8mm

YJ2.5-23.6-4.0AU

CTW-0.14/4

CT-4/10

RT-2.

 image47 25A Male crimp contact

For SF, SA, SP, SY, WP, WS WF WY16-28

Wire size

Stripping length

Male crimp contact p/n

Crimping tool p/n

Removal tool p/n

0.75-1.0mm2

AWG 18

8mm

YK2.5-20-1.0AU

CTW-0.14/4

RT-2.5

1.5mm2

AWG 16

8mm

YK2.5-20-1.5AU

CTW-0.14/4

RT-2.5

2.5mm2

AWG 14

8mm

YK2.5-20-2.5AU

CTW-0.14/4

RT-2.5

4.0mm2

AWG 12

8mm

YK2.5-20-4.0AU

CTW-0.14/4

CT-4/10

RT-2.

 image48 25A Male crimp contact

For WS WF WY32-55

Wire size

Stripping length

Male crimp contact p/n

Crimping tool p/n

Removal tool p/n

0.75-1.0mm2

AWG 18

8mm

YK2.5-22.2-1.0AU

CTW-0.14/4

RT-2.5

1.5mm2

AWG 16

8mm

YK2.5-22.2-1.5AU

CTW-0.14/4

RT-2.5

2.5mm2

AWG 14

8mm

YK2.5-22.2-2.5AU

CTW-0.14/4

RT-2.5

4.0mm2

AWG 12

8mm

YK2.5-22.2-4.0AU

CTW-0.14/4

CT-4/10

RT-2.5

50A Crimp contact
※Contact diameter: ∅3.5※Material:copper
※Contact resistance:0.5mΩ
image50 25A Male crimp contact

For SF, SA, SP, SY, WP, WS WF WY16-28

image49 image51

Wire size

Stripping length

Male crimp contact p/n

Crimping tool p/n

Removal tool p/n

1.5mm2

AWG 16

10mm

YJ3.5-31-1.5AU

CTW-0.14/4

RT-3.5

2.5mm2

AWG 14

10mm

YJ3.5-31-2.5AU

CTW-0.14/4

RT-3.5

4.0mm2

AWG 12

10mm

YJ3.5-31-4.0AU

CTW-0.14/4

CT-4/10

RT-3.5

6.0mm2

AWG 10

10mm

YJ3.5-31-6.0AU

CT-4/10

RT-3.5

10.0mm2

AWG 7

10mm

YJ3.5-31-10.0AU

CT-4/10

RT-3.5

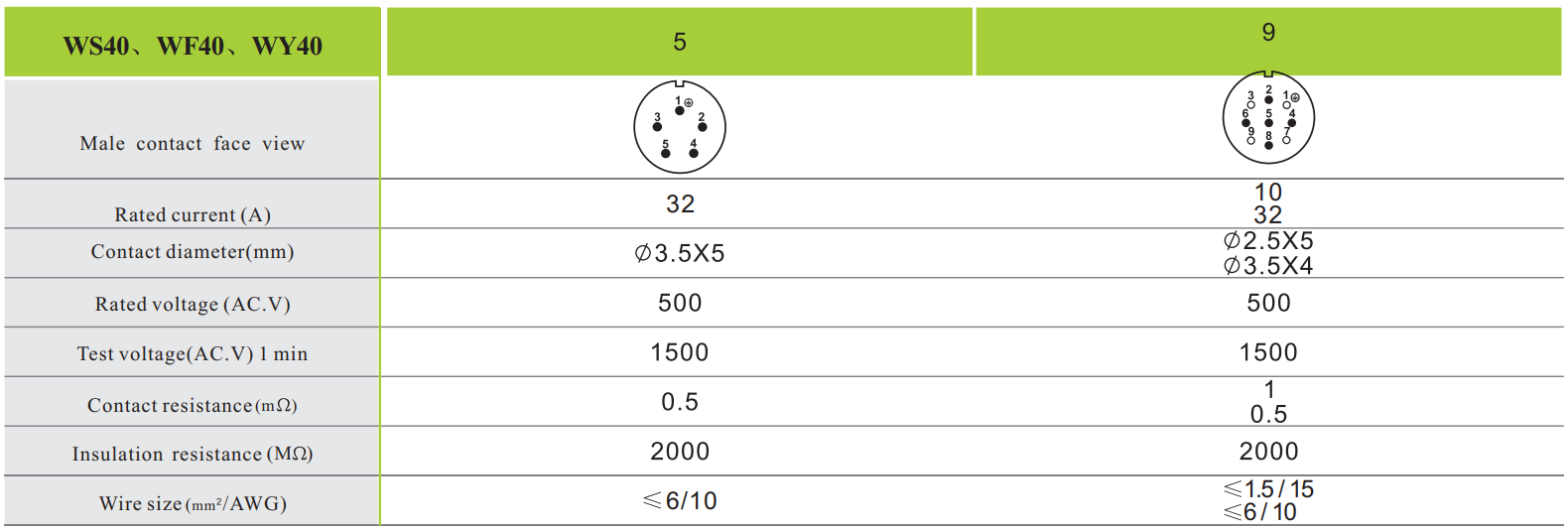

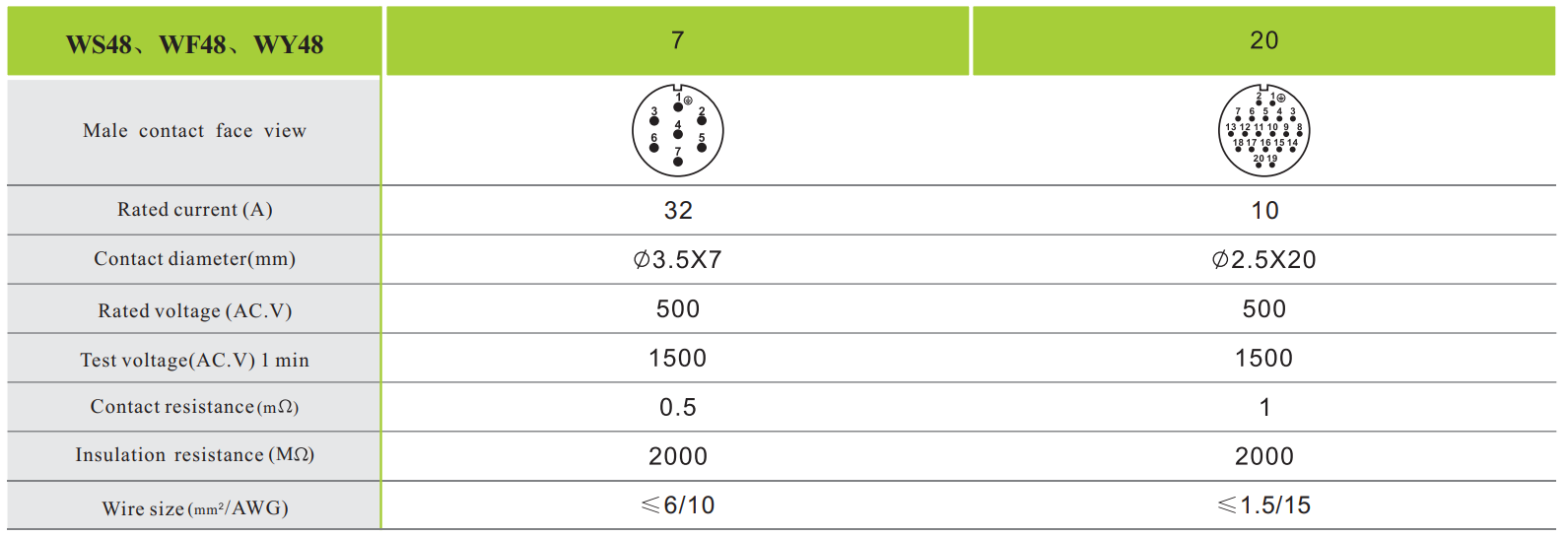

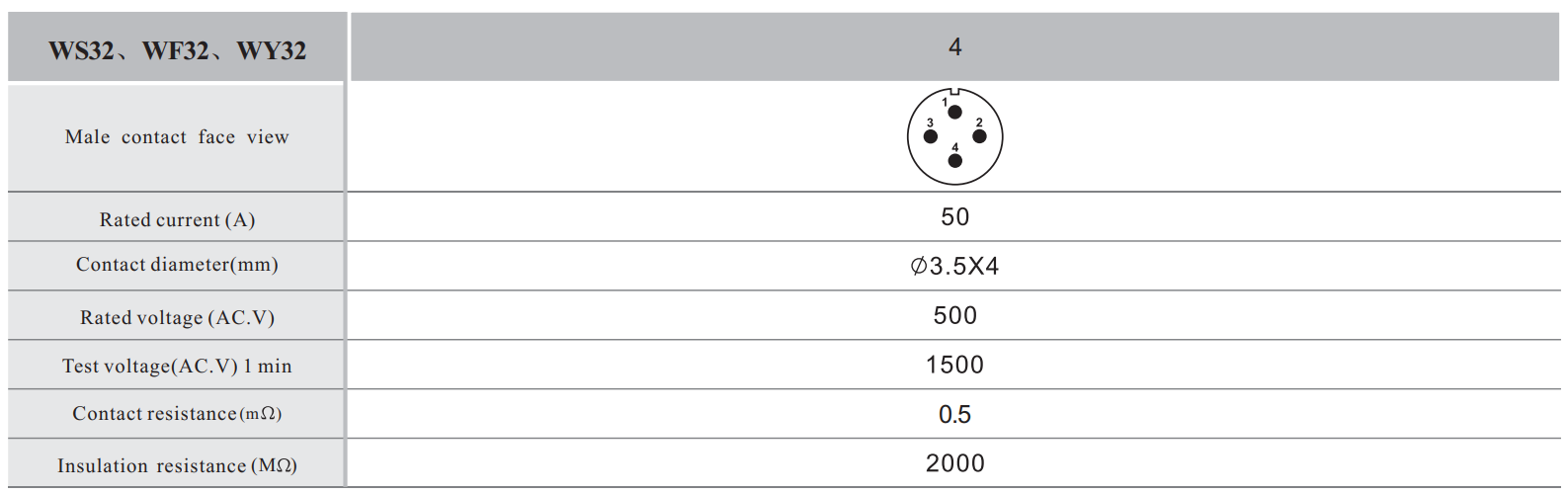

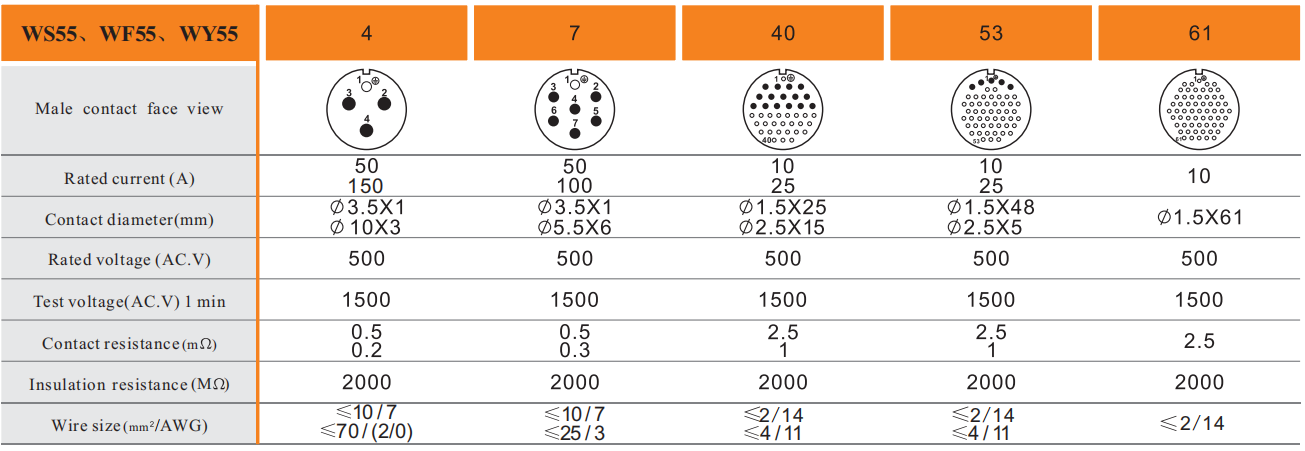

25A Male crimp contact

For WS WF WY32-55

Wire size

Stripping length

Male crimp contact p/n

Crimping tool p/n

Removal tool p/n

1.5mm2

AWG 16

10mm

YK3.5-27.6-1.5AU

CTW-0.14/4

RT-3.5

2.5mm2

AWG 14

10mm

YK3.5-27.6-2.5AU

CTW-0.14/4

RT-3.5

4.0mm2

AWG 12

10mm

YK3.5-27.6-4.0AU

CTW-0.14/4

CT-4/10

RT-3.5

6.0mm2

AWG 10

10mm

YK3.5-27.6-6.0AU

CT-4/10

RT-3.5

10.0mm2

AWG 7

10mm

YK3.5-27.6-10.0AU

CT-4/10

RT-3.5
