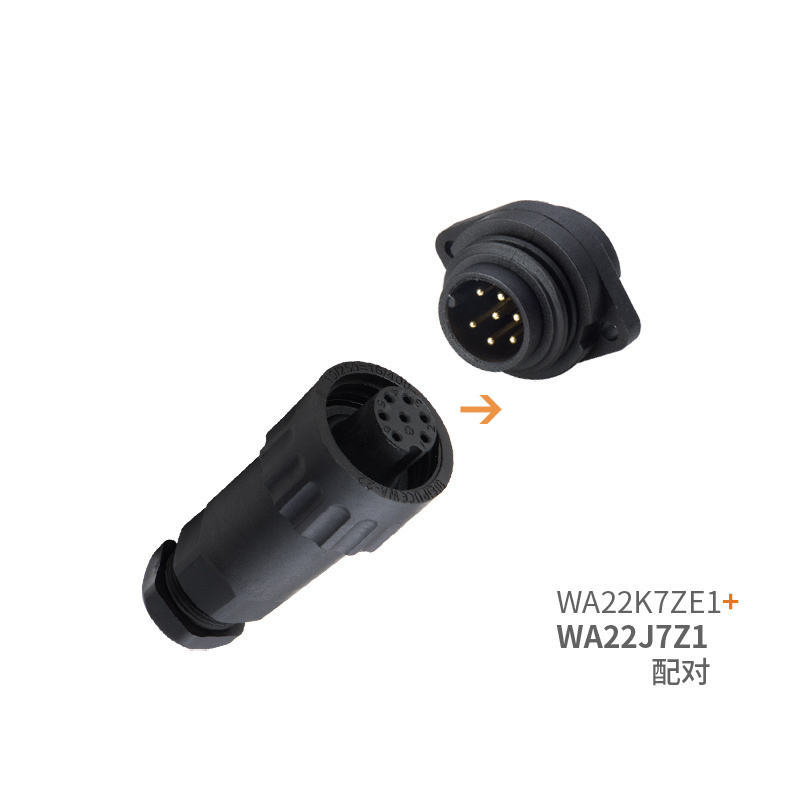

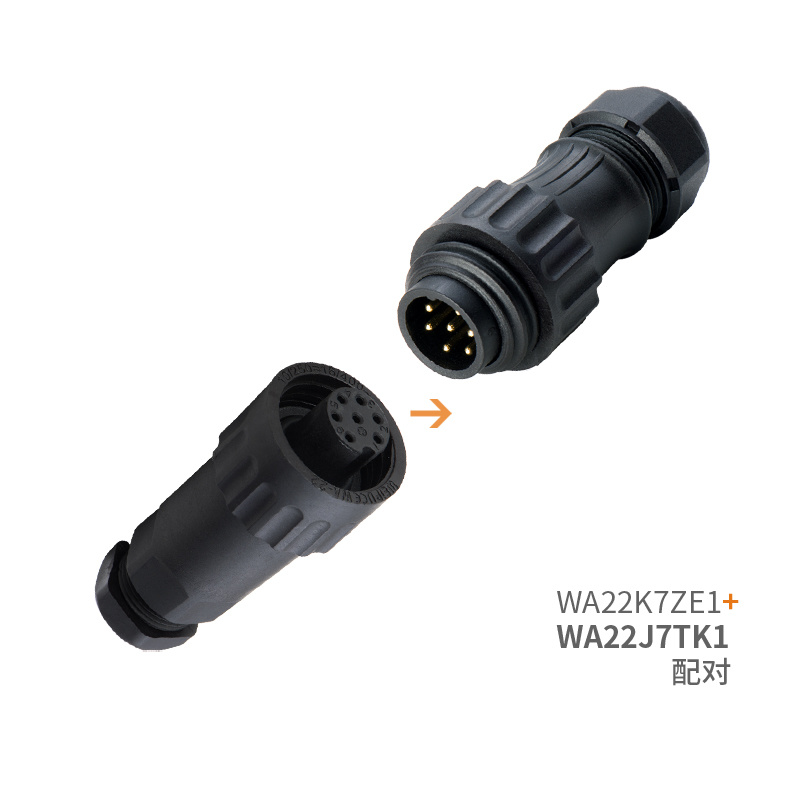

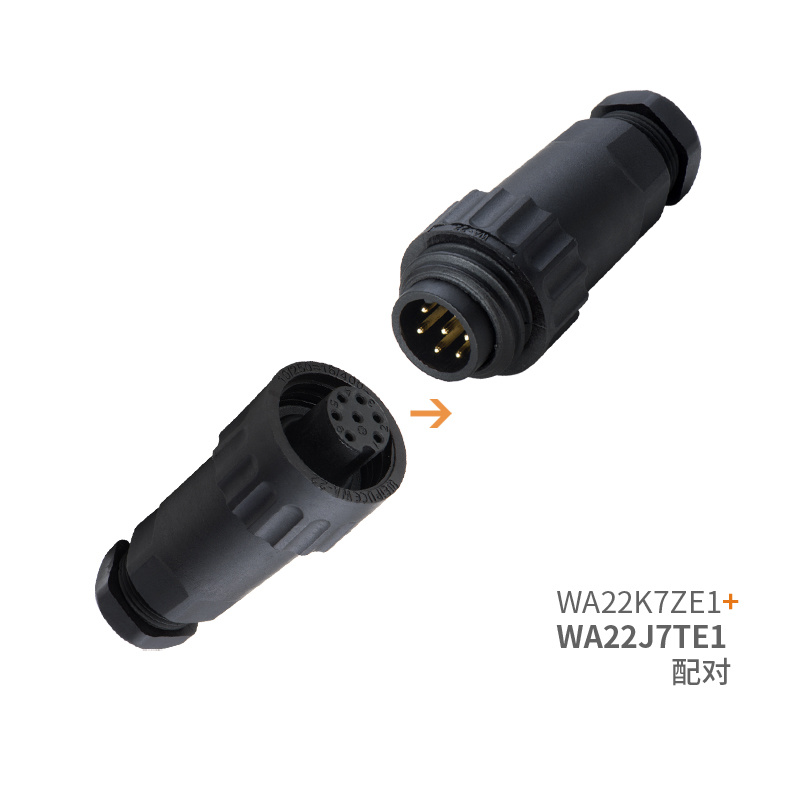

WA22K7ZE1 6+PE female panel connector,solder termination

WA22K7ZE1 6+PE female panel connector,solder termination Featured Image
  • WA22K7ZE1 6+PE female panel connector,solder termination
  • WA22K7ZE1 6+PE female panel connector,solder termination
  • WA22K7ZE1 6+PE female panel connector,solder termination
  • WA22K7ZE1 6+PE female panel connector,solder termination

Short Description:

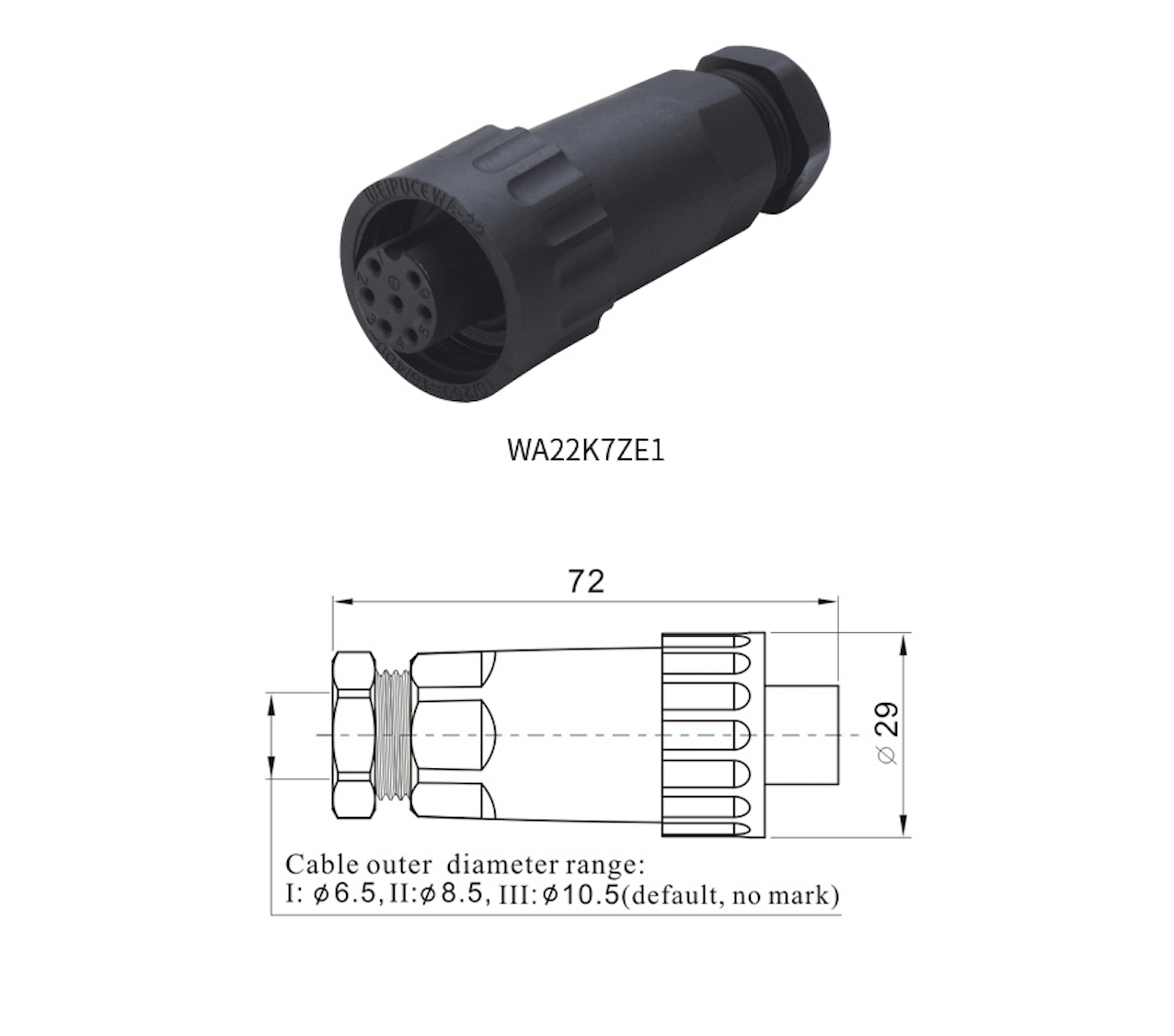

6+PE female cable connector WA22K7ZE1

Solder 6+PE、Nylon66, fire resistance: V-0、Brass with gold plating、IP67


  • Number of contact: 6+PE
  • Contact diameter (mm): 1.5
  • Rated voltage (AC.V): 250
  • Rated current (A): 10
    • Download as PDF

    Product Detail

    Product Tags

    3+PE male panel Cable connector
    WA22J4Z2

    1

    3+PE female cable connector
    WA22K4ZE2

    3+PE female cable connector
    With short back shell
    WA22K4TK2

    3+PE female cable connector
    With angled back shell
    WA22K4TL2

    2

    3+PE male cable connector
    WA22J4TE2

    3+PE female cable connector
    With short back shell
    WA22J4TK2

    rt (3)

    3+PE male cable connector
    With angled back shell
    WA22J4TL2

    3

    3+PE female panel Cable connector
    WA22K4Z2

    6+PE male panel Cable connector
    WA22J7Z1

    4

    6+PE female cable connector
    WA22K7ZE1

    6+PE female cable connector
    With short back shell
    WA22K7TK1

    6+PE female cable connector
    With angled back shell
    WA22K7TL1

    5
    gg1 (5)

    6+PE male cable connector
    WA22J7TE1

    6+PE female cable connector
    With short back shell
    WA22J7TK1

    6+PE male cable connector
    With angled back shell
    WA22J7TL1

    6

    6+PE female panel Cable connector
    WA22K7Z1

    a

    WA22G1

    d

    WA22G2

    Material and spec

    Spec

    sf

     ht

    Number of contact

    3+PE

    6+PE

    Termination

    Screw

    Solder

    Wire size

    Max2.5mm²/AWG14

    Max0.75mm²/AWG18

    Rated voltage(V)

    400V

    250V

    Rated current(A)

    16A

    10A

    Contact diameter

    ∅ 2×4

    ∅ 1.5×7

    Shell material

    Nylon66, fire resistance: V-0

    Contact material

    Brass with gold plating

    Cable outlet diameter

    6,8,10mm

    IP rating

    IP67

    Mating cycle

    >500

    Temperture range

    -40~+85℃

    Insulation resistance MΩ

    2000

    Test voltage(AC.V)1 min

    2000V

    Contact resistance MΩ

    2.5
