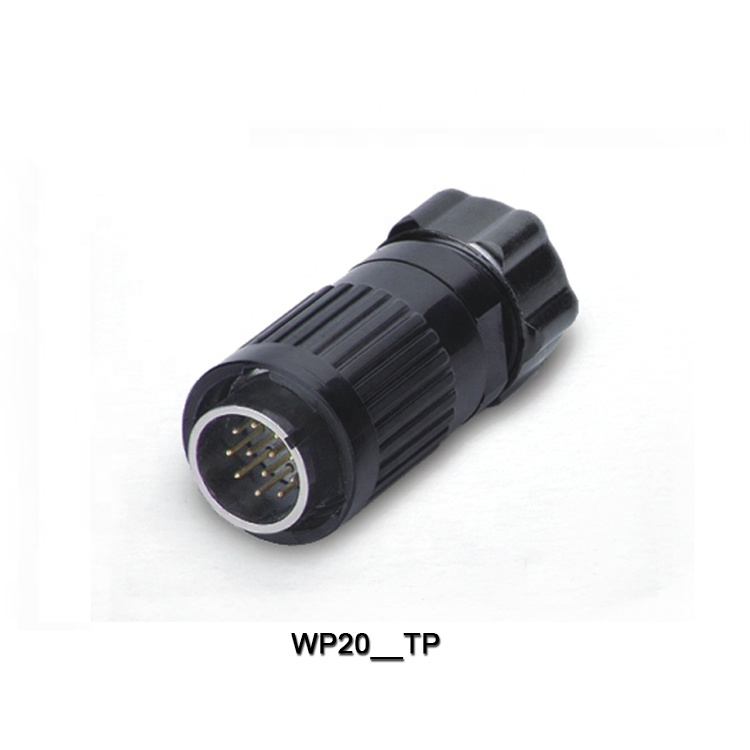

Weipu WP20-TP WP series connector plug for Metal hose cable Nylon66 connector

Short Description:

Metal hose: TP


Product Detail

Product Tags

WP20 TP



Material and spec

Coupling Type Bayonet
Shell Nylon 66/Zinc alloy
Insert material PPS ,max temperature 260℃
Contact material Brass
Contact plating Gold Plating
Termination Solder:1mm,2mm,3mm contact

Screw:3mm contact

Mating cycle > 500
Temperature range -40℃~+85℃

Contact arrangement and spec for solder/screw

Number of contact

2

3

4

5

5B

6

7

9

12

Male contact face view

 mbn (1)

 mbn (2)

mbn (3)

 mbn (4)

 mbn (5)

mbn (6)

 mbn (7)

mbn (8)

mbn (9)

Rated current (A)

30A

30A

30A

30A

5A、30A

5A、30A

15A

5A

5A

Contact diameter

 3×2

 3×3

 3×4

 3×5

 1×3
 3×2

 1×4
 3×2

 2×7

 1×9

 1×12

Rated voltage(AC.V)

500V

500V

500V

500V

500V

500V

500V

500V

400V

Test voltage(AC.V)
1 min

1500V

1500V

1500V

1500V

1500V

1500V

1500V

1500V

1200V

Contact resistance mΩ

1

1

1

1

5、1

5、1

2.5

5

5

Insulation resistance MΩ

2000

2000

2000

2000

2000

2000

2000

2000

2000

Termination

solder
screw

solder
screw

solder
screw

solder
screw

solder
screw



solder

solder

solder

Wire size mm² /AWG

≤4.17/11

≤4.17/11

≤4.17/11

≤4.17/11

≤0.785/18
≤4.17/11

≤0.785/18
≤4.17/11

≤2/14

≤0.785/18

≤0.785/18

 Crimp contact arrangement and spec

Number of contact

2

3

5

7

8

Male contact face view

 nv (1)

 nv (2)

 nv (3)

nv (4)

 nv (5)

Rated current (A)

25A

25A

10A

10A

5A

Contact diameter

 2.5×2

 2.5×3

 1.5×5

 1.5×7

 1×8

Rated voltage(AC.V)

500V

500V

500V

500V

500V

Test voltage(AC.V)1 min

1500V

1500V

1500V

1500V

1500V

Contact resistance mΩ

1

1

2.5

2.5

5

Insulation resistance mΩ

2000

2000

2000

2000

2000
