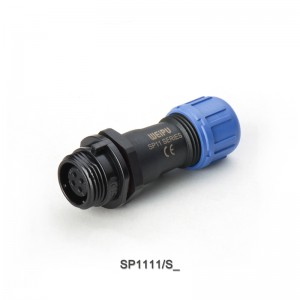

Weipu IP68 waterproof circular In-line female cable connector SP1111/S

Short Description:

In-line cable connector Mate with SP1110


Product Detail

Product Tags

SP1111S



Material and spec

Material Plastic
IP Rating IP68
Coupling Type Threaded coupling
Termination Solder
Shell Nylon66, fire resistance: V-0
Insert material PPS max temperature 260℃fire resistance:V-0
Contact material Brass with gold plating
Termination Solder
Cable outer diameter range Ⅰ: 4-6.5mm
Mating cycle > 500
Temperature range -40℃~+85℃
Insulation resistance MΩ 2000

Contact arrangement and spec for solder termination

Number of contact

2

3

4

5

Male contact face view

 gr (1)

gr (2)

gr (3)

 gr (4)

Rated current (A)

5

5

3

3

Contact diameter(mm)

1

1

0.7

0.7

Rated voltage(AC.V)

180

180

125

125

Test voltage(AC.V)1 min

1000

1000

1000

1000

Contact resistance (mΩ)

5

5

10

10

Wire size (mm² /AWG)

≤0.785/18

≤0.785/18

≤0.785/18

≤0.785/18
