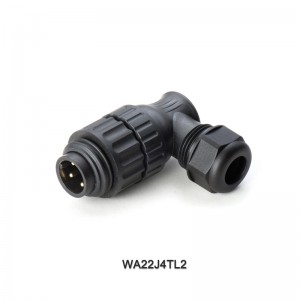

Material and spec
| Material | Metal |
| IP Rating | IP67 |
| Coupling Type | Threaded coupling |
| Shell | Zinc alloy with black nickel plating |
| Insert material | PPS max temperature 260℃，fire resistance:V-0 |
| Contact material | Brass with gold plating |
| Termination | Solder |
| Cable outer diameter range | 5-8mm |
| Mating cycle | > 500 |
| Temperature range | -40℃~+85℃ |
| Insulation resistance MΩ | 2000 |
Contact arrangement and spec for solder termination
|
Number of contact |
2 |
3 |
4 |
5 |
6 |
7 |
9 |
|
Male contact face view |
|
|
|
|
|
|
|
|
Rated current (A) |
13A |
13A |
5A |
5A |
5A |
5A |
3A |
|
Contact diameter |
∅1.6×2 |
∅1.6×3 |
∅1×4 |
∅1×5 |
∅1×6 |
∅1×7 |
∅0.7×9 |
|
Rated voltage(AC.V) |
250V |
250V |
200V |
180V |
125V |
125V |
125V |
|
Test voltage(AC.V)1 min |
1500V |
1500V |
1500V |
1000V |
1000V |
1000V |
1000V |
|
Contact resistance mΩ |
2 |
2 |
5 |
5 |
5 |
5 |
10 |
|
Wire size mm² /AWG |
≤2/14 |
≤2/14 |
≤0.785/18 |
≤0.785/18 |
≤0.785/18 |
≤0.785/18 |
≤0.785/1 |
