Short Description:

Aviation Connector Socket and Switch,SP13
Coupling:Threaded coupling
Shell material:PC,Nylon66,fire resistance:V-0
Insert material:PPS,max temperature 260℃
Termination:Solder
Cable outer diameter range:[Ⅰ:4-6.5mm(Not marked)Ⅱ:5-8mm],IP range:IP68
Temperature range:-40℃~ 85℃
Insulation resistance:2000MΩ
Mating cycle:500
Contact material:Brass with gold plating
Widely used in various machine tools, locomotives, electricity, post and telecommunications, communications,navigation, instrumentation, lighting systems, medical and oil exploration and other fields.


Product Detail

Product Tags

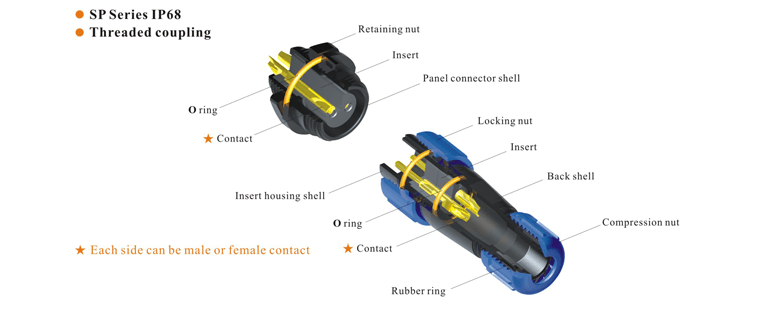

dfb

Cable connector
Mate with SP1311, SP1312
SP1310/P_ _

mgh (1)
1上2下(小)
mgh (2)

In-line cable connector
Mate with SP1310
SP1311/S_ _

mgh (3)

Rear-nut mount
Mate with SP1310
SP1312/S_ _

Cable connector
Mate with SP1311, SP1312
SP1310/S_ _
①②

mgh (4)
1上2下(小)
mgh (5)

In-line cable connector
Mate with  SP1310
SP1311/P_ _

mgh (6)

Rear-nut mount
Mate with SP1310
SP1312/P_ _

①C:with cap  N:without cap
②Cable outer diameter:Ⅰ:4-6.5mm Ⅱ:5-8mm
③Number of contact:2.3.4.5.6.7.9
④ C:with cap  N:without cap
⑤ Number of contact:2.3.4.5.6.7.9

mgh (7)

Plastic cover IP68

Material and spec

Material Plastic
IP Rating IP68
Coupling Type Threaded coupling
Termination Solder
Shell Nylon66, fire resistance: V-0
Insert material PPS max temperature 260℃fire resistance:V-0
Contact material Brass with gold plating
Termination Solder
Cable outer diameter range Ⅰ: 4-6.5mm
Mating cycle > 500
Temperature range -40℃~+85℃
Insulation resistance MΩ 2000

Contact arrangement and spec for solder termination

Number of contact

2

3

4

5

6

7

9

Male contact face view

 gr (1)

gr (2)

 gr (3)

gr (4)

s1 (1)

s1 (2)

 s1 (3)

Rated current (A)

13A

13A

5A

5A

5A

5A

3A

Contact diameter

 1.6×2

 1.6×3

 1×4

 1×5

 1×6

 1×7

 0.7×9

Rated voltage(AC.V)

250V

250V

200V

180V

125V

125V

125V

Test voltage(AC.V)1 min

1500V

1500V

1500V

1000V

1000V

1000V

1000V

Contact resistance mΩ

2

2

5

5

5

5

10

Wire size mm² /AWG

≤2/14

≤2/14

≤0.785/18

≤0.785/18

≤0.785/18

≤0.785/18

≤0.785/18
