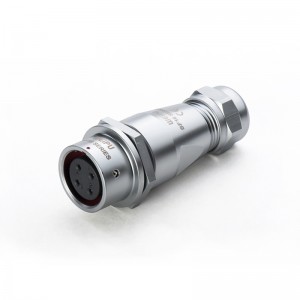

Weipu SF1611/S female In-line cable connector Push-pull IP67 waterproof plug socket electrical

Short Description:

In-line cable connector Mate with SF1610


Product Detail

Product Tags

SF1611S

Material and spec

Material Metal
IP Rating IP67
Coupling Type Push and Pull
Termination Solder , Screw , Crimp ,
Shell Brass with chrome plating
Insert material PPS, max temperature 260℃
Contact material Brass with gold plating
Termination Solder/Screw/Crimp
Cable outer diameter range I: 8-12mm
Mating cycle > 500
Temperature range -40℃~+85℃
Insulation resistance MΩ 2000

Contact arrangement and spec for solder termination

Number of contact

2

3

4

5

6

7

9

Male contact face view

 gr (1)

 hdhf (2)

 hdhf (3)

 gr (4)

 s1 (1)

 hrt (5)

 s1 (3)

Rated current (A)

13A

13A

5A

5A

5A

5A

3A

Contact diameter

fds 1.6×2

fds 1.6×3

fds 1×4

fds 1×5

fds 1×6

fds 1×7

fds 0.7×9

Rated voltage(AC.V)

250V

250V

200V

180V

125V

125V

125V

Test voltage(AC.V)1 min

1500V

1500V

1500V

1000V

1000V

1000V

1000V

Contact resistance mΩ

2

2

5

5

5

5

10

Wire size mm² /AWG

≤2/14

≤2/14

≤0.785/18

≤0.785/18

≤0.785/18

≤0.785/18

≤0.785/18

Crimp contact arrangement and spec

Number of contact

2

3

4

Male contact face view

 hrt (1)

hrt (2)

hrt (3)

Rated current (A)

10

10

5

Contact diameter(mm)

1.5

1.5

1

Rated voltage(AC.V)

500

500

400

Test voltage(AC.V)1 min

1500

1500

1200

Contact resistance (mΩ)

2.5

2.5

5

Insulation resistance (MΩ)

2000

2000

2000
