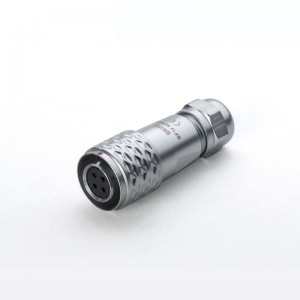

Weipu SF series connector SF1210/S IP67 waterproof female connector plug

Short Description:

Cable connector Mate with SF1211,SF1212,SF1213


Product Detail

Product Tags

SF1210S

Material and spec

Material Metal
IP Rating IP67
Coupling Type Push and Pull
Termination Solder , Screw , Crimp ,
Shell Brass with chrome plating
Insert material PPS, max temperature 260℃
Contact material Brass with gold plating
Termination Solder/Screw/Crimp
Cable outer diameter range I: 8-12mm
Mating cycle > 500
Temperature range -40℃~+85℃
Insulation resistance MΩ 2000

Contact arrangement and spec for solder termination

Number of contact

2

3

4

5

6

7

9

Male contact face view

 hrt (1)

 fr (2)

qqq

 qqqq

s1 (1)

s1 (2)

 s1 (3)

Rated current (A)

13A

13A

5A

5A

5A

5A

3A

Contact diameter

 1.6×2

 1.6×3

 1×4

 1×5

 1×6

 1×7

 0.7×9

Rated voltage(AC.V)

250V

250V

200V

180V

125V

125V

125V

Test voltage(AC.V)1 min

1500V

1500V

1500V

1000V

1000V

1000V

1000V

Contact resistance mΩ

2

2

5

5

5

5

10

Wire size mm² /AWG

≤2/14

≤2/14

≤0.785/18

≤0.785/18

≤0.785/18

≤0.785/18

≤0.785/18
