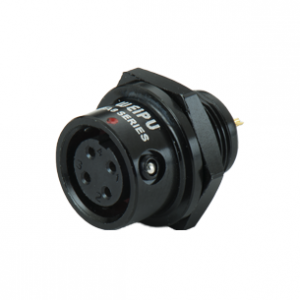

SA812/S Rear-nut mount Mate with SA810/P

Short Description:


Product Detail

Product Tags

SA812S



①Number of contact
②Colour:
B:Black
S:Silver
L:Blue (special order)
G:Green(special order)
R:Red (special order)

Material and spec

Material Metal
IP Rating IP67
Coupling Type Push and Pull
Termination Solder
Shell Anodized aluminium
Insert material PPS max temperature 260℃fire resistance:V-0
Contact material Brass with gold plating
Termination Solder
Cable outer diameter range I: 3-4mm
Mating cycle > 500
Temperature range -40℃~+85℃
Insulation resistance MΩ 2000

Contact arrangement and spec for solder termination

Number of contact

2

3

4

5

Male contact face view

fr (1)

 fr (2)

qqq

 qqqq

Rated current (A)

5

5

3

3

Contact diameter(mm)

1

1

0.7

0.7

Rated voltage(AC.V)

180

180

125

125

Test voltage(AC.V)1 min

1000

1000

1000

1000

Contact resistance (mΩ)

5

5

10

10

Wire size (mm² /AWG)

≤0.785/18

≤0.785/18

≤0.785/18

≤0.785/18
