Main product Cable connector tool Aviation plug SA28 Support samples

Short Description:

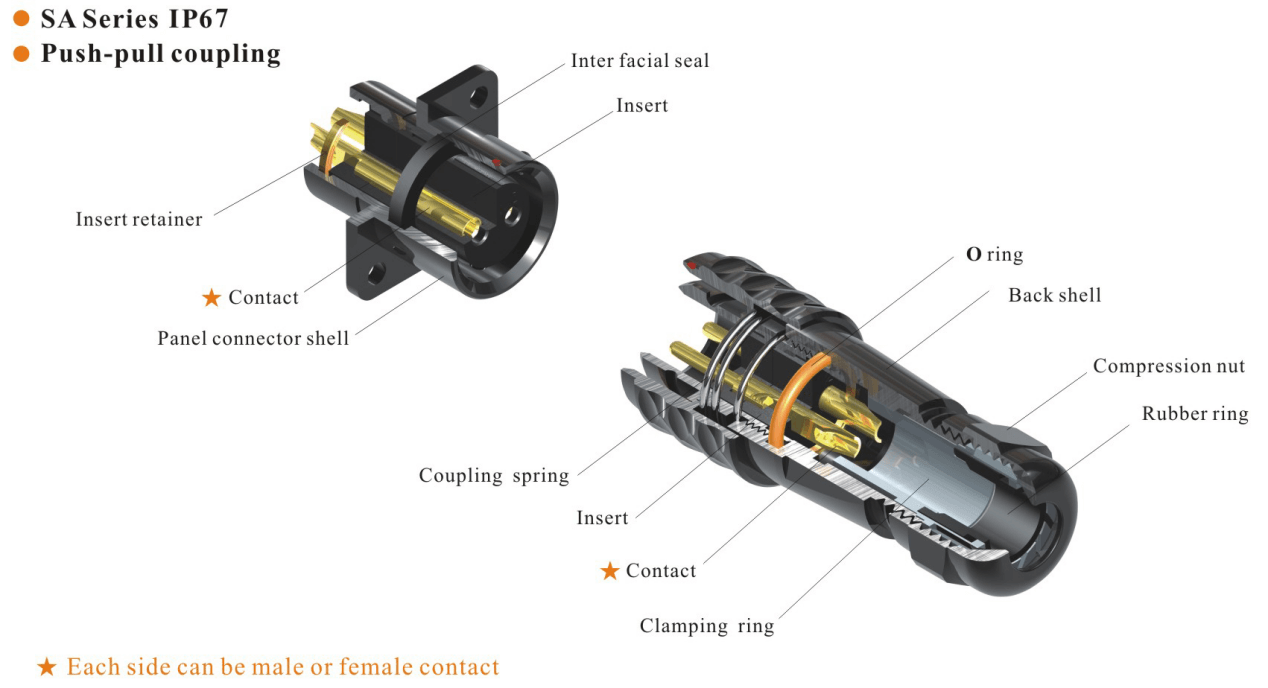

Aviation Connector Socket and Switch,SA28
Coupling:Push-pull
Shell material:Anodized aluminium
Insert material:PPS,max temperature 260℃
Cable outer diameter range:13-16mm
IP range:IP67
Temperature range:-40℃~ 85℃
Insulation resistance:2000MΩ
Mating cycle:500
Contact material:Brass with gold plating
Termination:Solder/Crimp/Screw
Widely used in various machine tools, locomotives, electricity, post and telecommunications, communications,navigation, instrumentation, lighting systems, medical and oil exploration and other fields.


Product Detail

Product Tags

①Number of contact
②Cable outer diameter:: 13-12mm
③Colour:
B:Black
S:Silver
L:Blue (special order)
G:Green(special order)
R:Red (special order)
④1:solder,2:screw,3:crimp

⑤ Number of contact
⑥ Colour:
B:Black
S:Silver
L:Blue (special order)
G:Green(special order)
R:Red (special order)
⑦1:solder,2:screw,3:crimp

Material and spec

Material Metal
IP Rating IP67
Coupling Type Push and Pull
Termination Solder
Shell Anodized aluminium
Insert material PPS, max temperature 260℃
Contact material Brass with gold plating
Termination Solder
Cable outer diameter range Ⅰ: 4-6.5mm Ⅱ: 5-8mm
Mating cycle > 500
Temperature range -40℃~+85℃
Insulation resistance MΩ 2000

Contact arrangement and spec for solder termination

Number of contact

2

3

4

7

8

9

10

10B

12

16

17

20

24

26

Male contact face view

hdhf (1)

hdhf (2)

hdhf (3)

hdhf (4)

hdhf (5)  hdhf (6)

hdhf (7)

 hdhf (8)

hdhf (9)

hdhf (10)

hdhf (11)

 hdhf (12)  hdhf (13)  hdhf (14)

Rated current (A)

50A

50A

25A

25A

25A

25A

5A

25A

10A

10A

10A

10A

5A

5A

5A

Contact diameter

3.5×2

3.5×3

2.5×4

2.5×7

2.5×8

2.5×4

1×5

2.5×10

1.5×10

1.5×12

1.5×16

1.5×17

1×20

1×24

1×26

Termination

solder
screw

solder
screw

solder
screw

solder
screw

solder
screw

solder

solder
screw

solder

solder

solder

solder

solder

solder

solder

Rated voltage(AC.V)

500V

500V

500V

500V

500V

500V

500V

500V

500V

500V

500V

400V

400V

400V

Test voltage(AC.V)
1 min

1500V

1500V

1500V

1500V

1500V

1500V

1500V

1500V

1500V

1500V

1500V

1200V

1200V

1200V

Contact resistance mΩ

0.5

0.5

1

1

1

1

5

1

2.5

2.5

2.5

2.5

5

5

5

Wire size mm² /AWG

10/7

10/7

≤4/11

4/11

4/11

4/11

≤0.75/18

4/11

2/14

2/14

2/14

2/14

0.75/18

0.75/18

0.75/18

Number of contact

7

12

15

19

Male contact face view

 jj (1)

jj (2)

 jj (3)

jj (4)

Rated current (A)

25A

10A

5A

5A

Contact diameter

 dv 2.5×7

dv 1.5×12

dv 1×15

dv 1×19

Rated voltage(AC.V)

500V

500V

400V

400V

Test voltage(AC.V)1 min

1500V

1500V

1200V

1200V

Contact resistance mΩ

1

2.5

5

5

Insulation resistance mΩ

2000

2000

2000

2000
