①Number of contact
②Cable outer diameter:Ⅰ:3-4mm
③ Number of contact

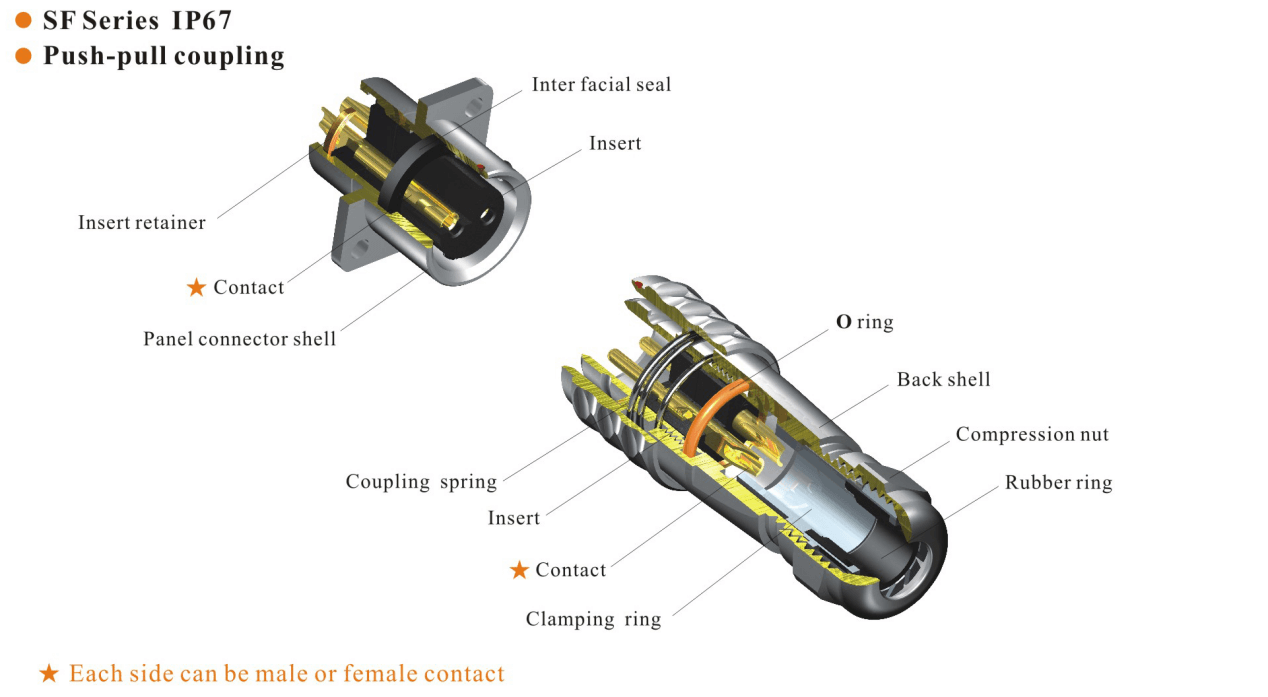

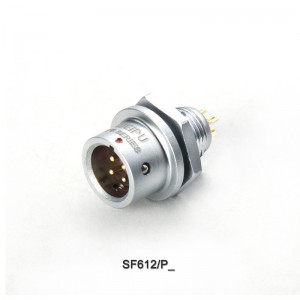

Material and spec
| Material | Metal |
| IP Rating | IP67 |
| Coupling Type | Push and Pull |
| Termination | Solder , Screw , Crimp , |
| Shell | Brass with chrome plating |
| Insert material | PPS, max temperature 260℃ |
| Contact material | Brass with gold plating |
| Termination | Solder/Screw/Crimp |
| Cable outer diameter range | I: 8-12mm |
| Mating cycle | > 500 |
| Temperature range | -40℃~+85℃ |
| Insulation resistance MΩ | 2000 |
Contact arrangement and spec for solder termination
|
Number of contact |
2 |
3 |
4 |
5 |
|
Male contact face view |
|
|
|
|
|
Rated current (A) |
3 |
3 |
3 |
3 |
|
Contact diameter(mm) |
0.6 |
0.6 |
0.6 |
0.6 |
|
Rated voltage(AC.V) |
30 |
30 |
30 |
30 |
|
Test voltage(AC.V)1 min |
500 |
500 |
500 |
500 |
|
Contact resistance (mΩ) |
10 |
10 |
10 |
10 |
|
Wire size (mm² /AWG) |
≤0.5/20 |
≤0.5/20 |
≤0.5/20 |
≤0.5/20 |
.
