Cable connector tool Aviation plug SA6 Support samples

Short Description:

Aviation Connector Socket and Switch,SA6
Coupling:Push-pull
Shell material:Anodized aluminium
Insert material:PPS
max temperature 260℃
Cable outer diameter range:3.5-4mm
IP range:IP67
Temperature range:-40℃~ 85℃
Insulation resistance:2000MΩ
Mating cycle:500
Contact material:Brass with gold plating
Termination:Solder
Widely used in various machine tools, locomotives, electricity, post and telecommunications, communications,navigation, instrumentation, lighting systems, medical and oil exploration and other fields.

Send email to us Download as PDF

Product Detail

Product Tags

Cable connector
Mate with SA611, SA612
SA610/P_ _

In-line cable connector
Mate with SA610
SA611/S_ _

Rear-nut mount
Mate with SA610
SA612/S_ _

Cable connector
Mate with SA611, SA612
SA610/S_ _
①②

In-line cable connector
Mate with SA610
SA611/P_ _

Rear-nut mount
Mate with SA610
SA612/P_ _

①Number of contact
②Colour:
B:Black
S:Silver
L:Blue (special order)
G:Green(special order)
R:Red (special order)

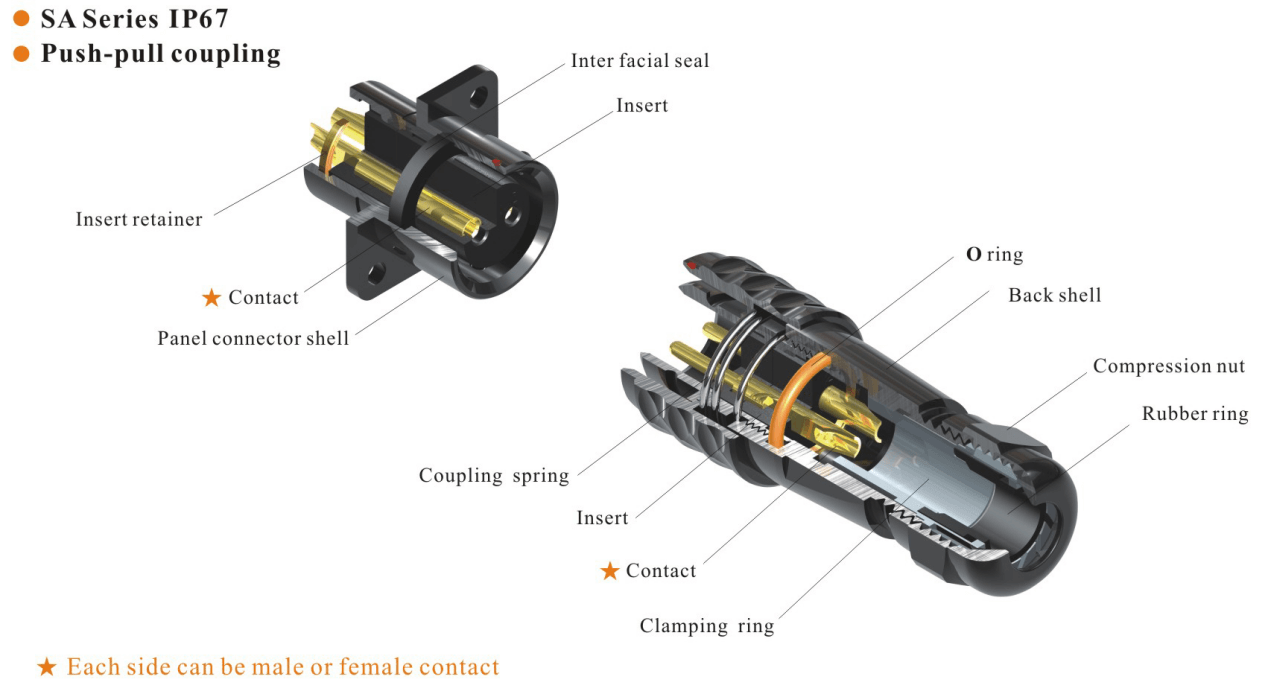

Material and spec

Material	Metal
IP Rating	IP67
Coupling Type	Push and Pull
Termination	Solder
Shell	Anodized aluminium
Insert material	PPS max temperature 260℃，fire resistance:V-0
Contact material	Brass with gold plating
Termination	Solder
Cable outer diameter range	I: 3-4mm
Mating cycle	> 500
Temperature range	-40℃~+85℃
Insulation resistance MΩ	2000

Contact arrangement and spec for solder termination

Number of contact	2	3	4	5
Male contact face view			.
Rated current (A)	3	3	3	3
Contact diameter(mm)	0.6	0.6	0.6	0.6
Rated voltage(AC.V)	30	30	30	30
Test voltage(AC.V)1 min	500	500	500	500
Contact resistance (mΩ)	10	10	10	10
Wire size (mm² /AWG)	≤0.5/20	≤0.5/20	≤0.5/20	≤0.5/20
