SA2013/P Square flange Mate with SA2010/S

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

SA2013P

Cable connector
Mate with SA2011, SA2012,SA2013
SA2010/P_ _

In-line cable connector
Mate with SA2010
SA2011/S_ _

Rear-nut mount
Mate with SA2010
SA2012/S_ _

Square flange
Mate with SA2010
SA2013/S_ _

Cable connector
Mate with SA2011, SA2012,SA2013
SA2010/S_ _ _
①②③④

In-line cable connector
Mate with SA2010
SA2011/P_ _

Rear-nut mount
Mate with SA2010
SA2012/P_ _

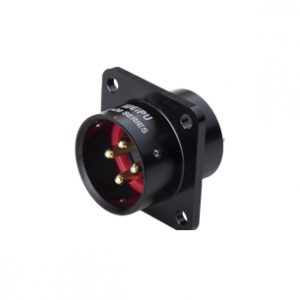

Square flange
Mate with SA2010
SA2013/P_ _
⑤⑥⑦

①Number of contact
②Cable outer diameter: Ⅰ:8-12mm
③Colour:
B:Black
S:Silver
L:Blue (special order)
G:Green(special order)
R:Red (special order)
④1:solder,2:screw,3:crimp

⑤ Number of contact
⑥Colour:
B:Black
S:Silver
L:Blue (special order)
G:Green(special order)
R:Red (special order)
⑦1:solder,2:screw,3:crimp

Material and spec

Material	Metal
IP Rating	IP67
Coupling Type	Push and Pull
Termination	Solder
Shell	Anodized aluminium
Insert material	PPS, max temperature 260℃
Contact material	Brass with gold plating
Termination	Solder
Cable outer diameter range	Ⅰ: 4-6.5mm Ⅱ: 5-8mm
Mating cycle	> 500
Temperature range	-40℃~+85℃
Insulation resistance MΩ	2000

Number of contact	2	3	4	5	6	7	9	12
Male contact face view
Rated current (A)	25	25	25	10	25 5	10	5	5
Contact diameter(mm)	2.25	2.5	2.5	1.5	φ2.5X4 φ1X2	1.5	1	1
Rated voltage(AC.V)	500	500	500	500	500	500	500	400
Test voltage(AC.V)1 min	1500	1500	1500	1500	1500	1500	1500	1200
Contact resistance (mΩ)	1	1	1	2.5	1 5	2.5	5	5
Termination	solder/screw	solder/screw	solder/screw	solder	solder	solder	solder	solder
Wire size (mm² /AWG)	≤4/11	≤4/11	≤4/11	≤2/14	≤4/11 ≤0.785/18	≤2/14	≤0.785/18	≤0.785/18
Wire size for screw termination (mm² /AWG)	≤1.5/15	≤1.5/15	≤1.5/15	/	/	/	/	/

Number of contact	2	3	4	5	7	7B	8
Male contact face view
Rated current (A)	25	25	25	10	10	5	5
Contact diameter(mm)	2.5	2.5	2.5	1.5	1.5	1	1
Rated voltage(AC.V)	500	500	500	500	500	400	400
Test voltage(AC.V)1 min	1500	1500	1500	1500	1500	1200	1200
Contact resistance (mΩ)	1	1	1	2.5	2.5	5	5
Insulation resistance (MΩ)	2000	2000	2000	2000	2000	2000	2000
