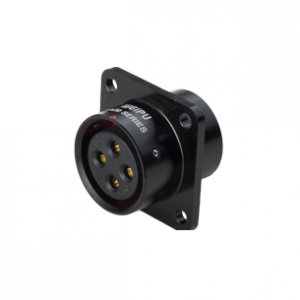

SA1613/S Square flange Mate with SA1610/P

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

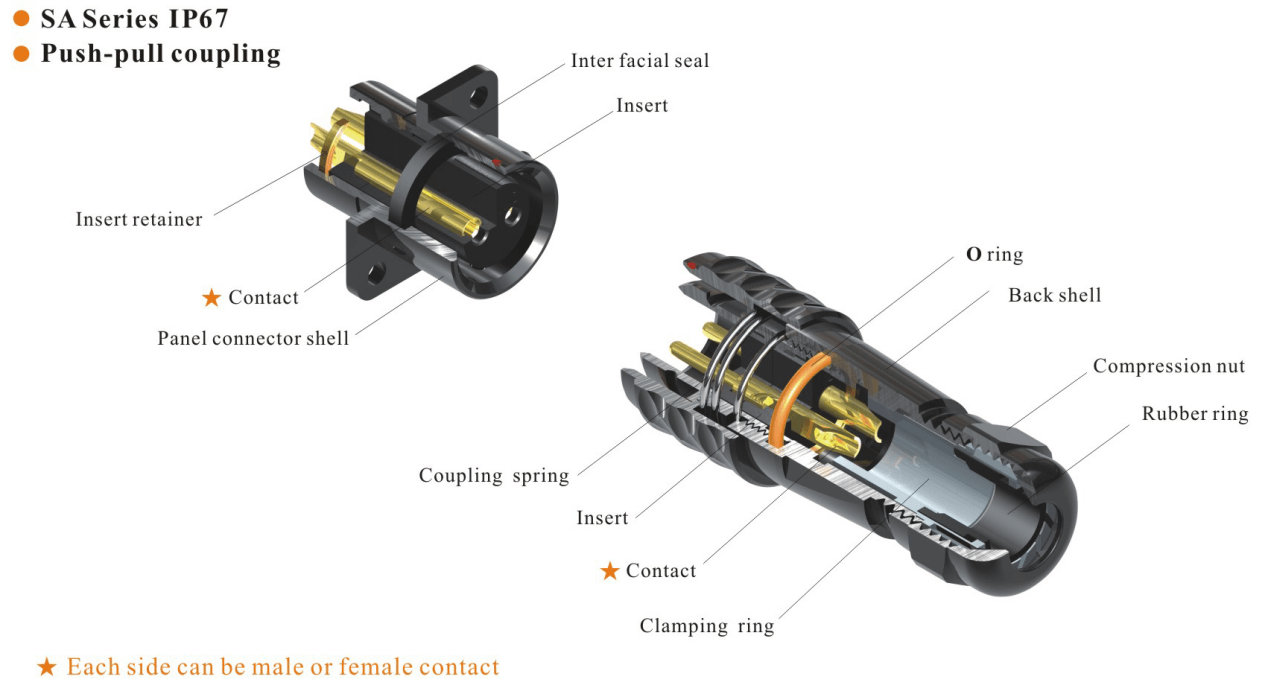

SA1613S

Cable connector
Mate with SA1611, SA1612,SA1613
SA1610/P_ _

In-line cable connector
Mate with SA1610
SA1611/S_ _

Rear-nut mount
Mate with SA1610
SA1612/S_ _

Square flange
Mate with SA1610
SA1613/S_ _

Cable connector
Mate with SA1611, SA1612,SA1613

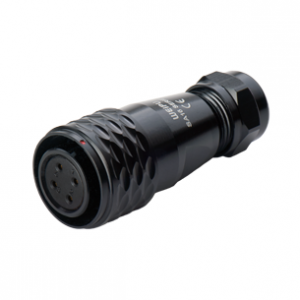

SA1610/S_ _ _
①②③④

In-line cable connector
Mate with SA1610
SA1611/P_ _

Rear-nut mount
Mate with SA1610
SA1612/P_ _

Square flange
Mate with SA1610
SA1613/P_ _
④⑤

①Number of contact
②Cable outer diameter: Ⅰ:5-8mm,Ⅱ:8-12mm
②Colour:
B:Black
S:Silver
L:Blue (special order)
G:Green(special order)
R:Red (special order)

④1:solder,3:crimp
⑤Number of contact
⑥Colour:
B:Black
S:Silver
L:Blue (special order)
G:Green(special order)
R:Red (special order)
⑦1:solder,3:crimp

Material and spec

Material	Metal
IP Rating	IP67
Coupling Type	Push and Pull
Termination	Solder
Shell	Anodized aluminium
Insert material	PPS, max temperature 260℃
Contact material	Brass with gold plating
Termination	Solder
Cable outer diameter range	Ⅰ: 4-6.5mm Ⅱ: 5-8mm
Mating cycle	> 500
Temperature range	-40℃~+85℃
Insulation resistance MΩ	2000

Number of contact	2	3	4	5	7	9	10
Male contact face view
Rated current (A)	10	10	5	5	5	5	5
Contact diameter(mm)	1.5	1.5	1	1	1	1	1
Rated voltage(AC.V)	500	500	500	500	400	400	400
Test voltage(AC.V)1 min	1500	1500	1500	1500	1200	1200	1200
Contact resistance (mΩ)	2.5	2.5	5	5	5	5	5
Wire size (mm² /AWG)	≤2/14	≤2/14	≤0.785/18	≤0.785/18	≤0.785/18	≤0.785/18	≤0.785/18

Number of contact	2	3	4
Male contact face view
Rated current (A)	10	10	5
Contact diameter(mm)	1.5	1.5	1
Rated voltage(AC.V)	500	500	400
Test voltage(AC.V)1 min	1500	1500	1200
Contact resistance (mΩ)	2.5	2.5	5
Insulation resistance (MΩ)	2000	2000	2000
