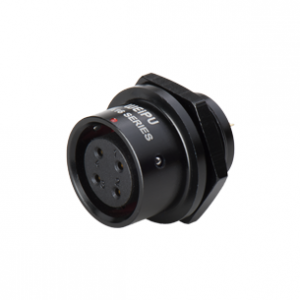

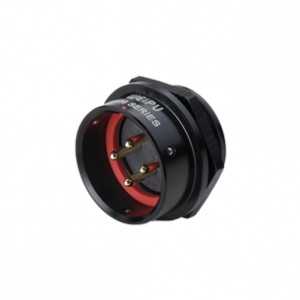

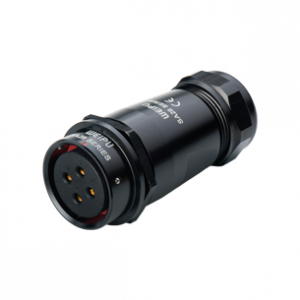

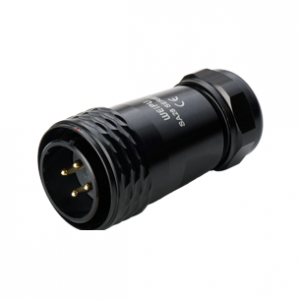

SA1213/P REAR-NUT MOUNT MATE WITH SA1210/P

Short Description:


Product Detail

Product Tags

Material and spec

Material Metal
IP Rating IP67
Coupling Type Push and Pull
Termination Solder
Shell Anodized aluminium
Insert material PPS, max temperature 260℃
Contact material Brass with gold plating
Termination Solder
Cable outer diameter range Ⅰ: 4-6.5mm Ⅱ: 5-8mm
Mating cycle > 500
Temperature range -40℃~+85℃
Insulation resistance MΩ 2000

Number of contact

2

3

4

5

6

7

9

Male contact face view

 q

qq

qqq

qqqq

s1 (1)

 s1 (2)

 s1 (3)

Rated current (A)

13

13

5

5

5

5

3

Contact diameter(mm)

1.6

1.6

1

1

1

1

0.7

Rated voltage(AC.V)

250

250

200

180

125

125

125

Test voltage(AC.V)1 min

1500

1500

1500

1000

1000

1000

1000

Contact resistance (mΩ)

2

2

5

5

5

5

10

Wire size (mm² /AWG)

≤2/14

≤2/14

≤0.785/18

≤0.785/18

≤0.785/18

≤0.785/18

≤0.785/18

Features
Overview and features / Applications / pictures

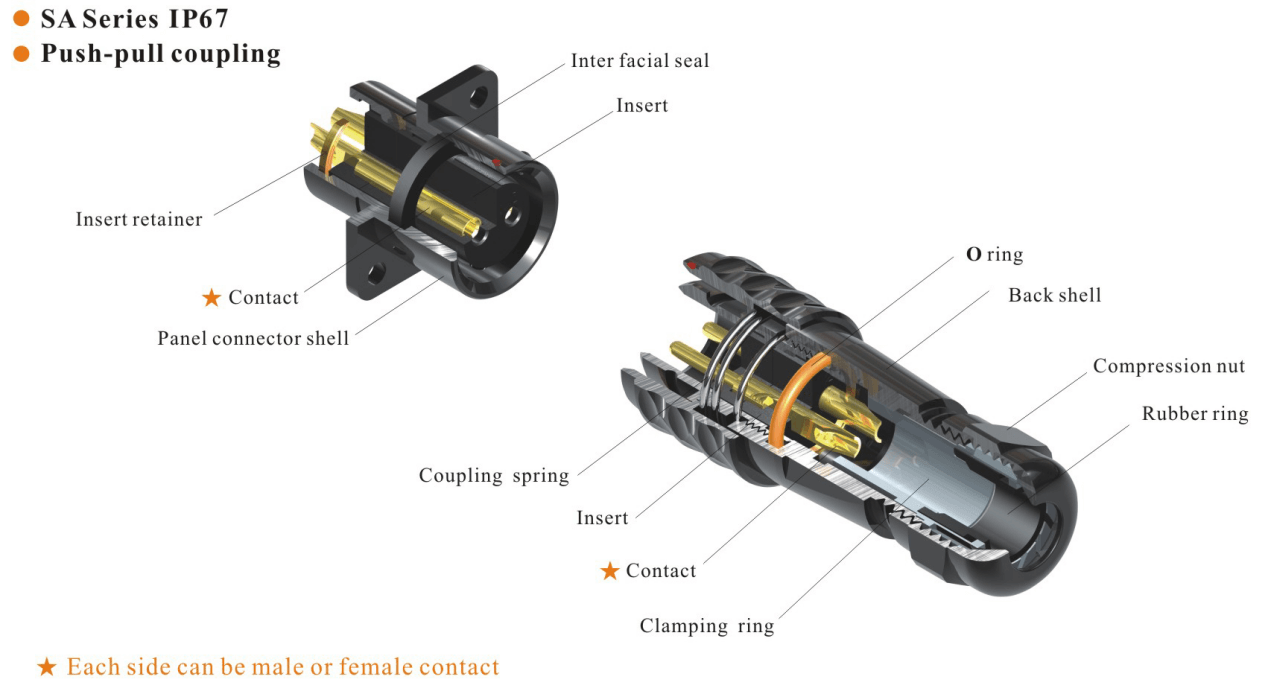

SA12 series is IP67 connector made of anodized aluminium, especially designed for the high-end market. With push and pull coupling, it is one of our most popular waterproof connectors.

This series is available for cable to cable (in-line) and cable to panel connection. Each side can choose from male or female contact.

1) Panel-hole cutout size: 12mm

2) Number of contacts: 2-9 with gold plated contacts

3) Rated current: 13A-3A

4) IP rating: IP67 after mated

5) Cable outer diameter: type I: 4-6.5mm, II: 5-8mm

6) Certification: CE, ROHS approval

Applications: This IP67 waterproof connector is designed for high-end products. The Stunning brass made shell made it widely used in many high-end areas, such as medical devices, high-end equipments, testing or measuring equipments, communications field, marine equipments etc. It can be used for both data and power.
