Short Description:

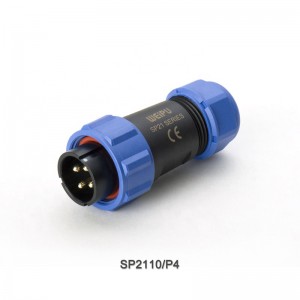

Aviation Connector + Socket, WP20
Counpling:Bayonet,Shell :Nylon66/Zinc alloy
Insert material: PPS,max temperature 260℃
Contact material:Brass
Contact plating:Gold Plating
Termination:Solderø1/2/3mm contact
Sccrew:ø3mm contact
Mating cycle:500
Temperature range:-40℃~+85℃
Widely used in various machine tools, locomotives, electricity, post and telecommunications, communications, navigation, instrumentation, lighting systems, medical and oil exploration and other fields.


Product Detail

Product Tags

ssdv

Receptacle
Mate with TP, TK,TO
Z IP44

rt (1)
企业微信截图_15998771644547
rt (2)

Metal hose
Mate with Z
TP

rt (3)

Plastic clamping-nut
Mate with Z
TK IP55

rt (4)

        PVC sleeve
        Mate with Z
        TO

Material and spec

Coupling Type Bayonet
Shell Nylon 66/Zinc alloy
Insert material PPS ,max temperature 260℃
Contact material Brass
Contact plating Gold Plating
Termination Solder:1mm,2mm,3mm contact

Screw:3mm contact

Mating cycle > 500
Temperature range -40℃~+85℃

Contact arrangement and spec for solder/screw

Number of contact

2

3

4

5

5B

6

7

9

12

Male contact face view

 mbn (1)

 mbn (2)

mbn (3)

 mbn (4)

 mbn (5)

mbn (6)

 mbn (7)

mbn (8)

mbn (9)

Rated current (A)

30A

30A

30A

30A

5A、30A

5A、30A

15A

5A

5A

Contact diameter

 3×2

 3×3

 3×4

 3×5

 1×3
 3×2

 1×4
 3×2

 2×7

 1×9

 1×12

Rated voltage(AC.V)

500V

500V

500V

500V

500V

500V

500V

500V

400V

Test voltage(AC.V)
1 min

1500V

1500V

1500V

1500V

1500V

1500V

1500V

1500V

1200V

Contact resistance mΩ

1

1

1

1

5、1

5、1

2.5

5

5

Insulation resistance MΩ

2000

2000

2000

2000

2000

2000

2000

2000

2000

Termination

solder
screw

solder
screw

solder
screw

solder
screw

solder
screw



solder

solder

solder

Wire size mm² /AWG

≤4.17/11

≤4.17/11

≤4.17/11

≤4.17/11

≤0.785/18
≤4.17/11

≤0.785/18
≤4.17/11

≤2/14

≤0.785/18

≤0.785/18

 Crimp contact arrangement and spec

Number of contact

2

3

5

7

8

Male contact face view

 nv (1)

 nv (2)

 nv (3)

nv (4)

 nv (5)

Rated current (A)

25A

25A

10A

10A

5A

Contact diameter

 2.5×2

 2.5×3

 1.5×5

 1.5×7

 1×8

Rated voltage(AC.V)

500V

500V

500V

500V

500V

Test voltage(AC.V)1 min

1500V

1500V

1500V

1500V

1500V

Contact resistance mΩ

1

1

2.5

2.5

5

Insulation resistance mΩ

2000

2000

2000

2000

2000
