Cable connector
Mate with SF2011, SF2012,SF2013
SF2010P_-_
In-line cable connector
Mate with SF2010
SF2011/P_ _ -_
① ② ③
Rear-nut mount
Mate with SF2010
SF2012/P_-_
Square flange
Mate with SF2010
SF20131P_-_
④⑤
|
In-line cable connector Mate with SF2010 SF2011/P_ _ -_ ①② ③ |
Rear-nut mount Mate with SF2010 SF2012/P_-_ |
Square flange Mate with SF2010 SF20131P_-_ ④ ⑤ |
| ①Number of contact ②1: solder. 2: screw, 3: crimp ③Cable outer diameter: : 8-12mm |
④Number of contact ⑤1: solder. 2: screw, 3: crimp |

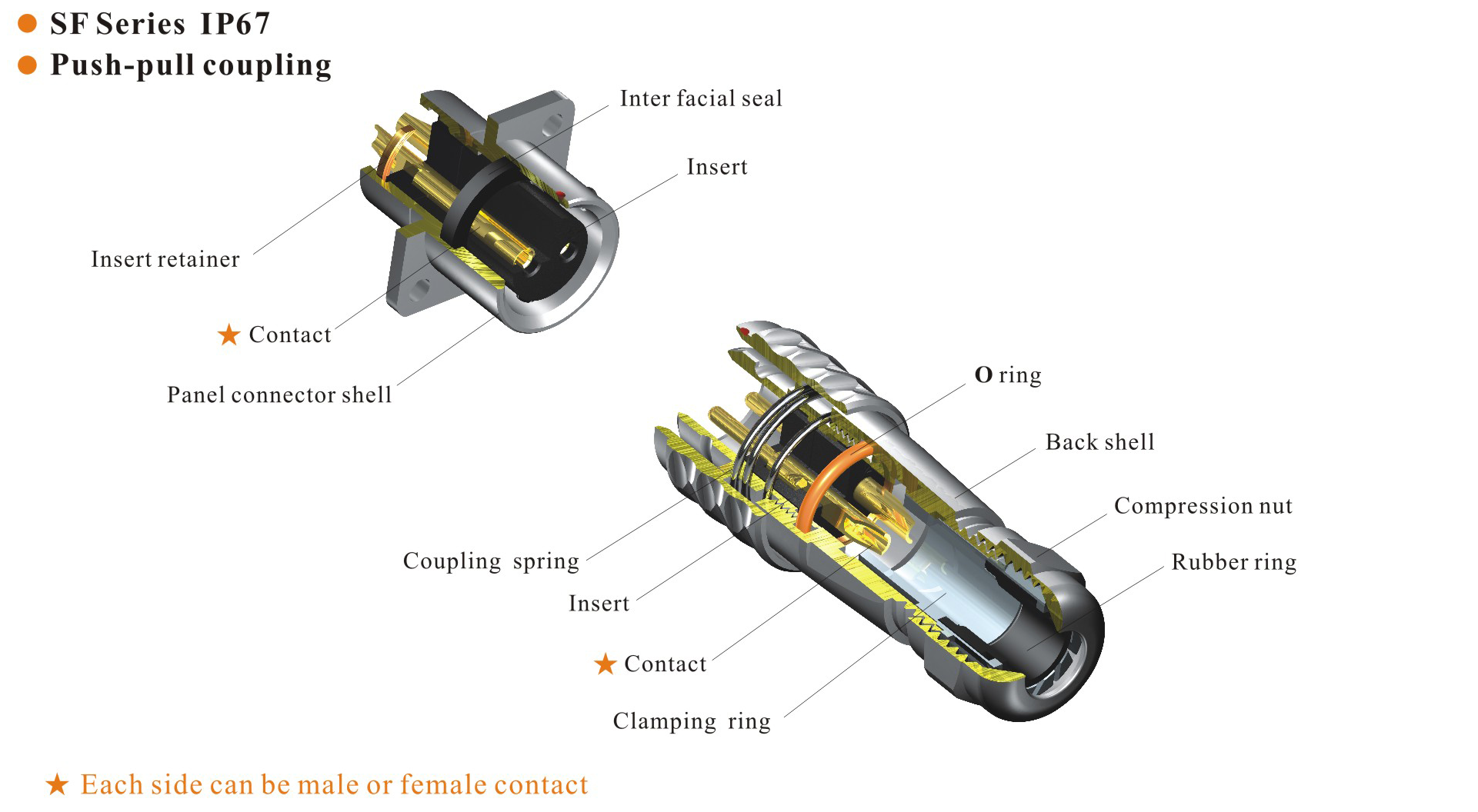

Material and spec
| Material | Metal |
| IP Rating | IP67 |
| Coupling Type | Push and Pull |
| Termination | Solder , Screw , Crimp , |
| Shell | Brass with chrome plating |
| Insert material | PPS, max temperature 260℃ |
| Contact material | Brass with gold plating |
| Termination | Solder/Screw/Crimp |
| Cable outer diameter range | I: 8-12mm |
| Mating cycle | > 500 |
| Temperature range | -40℃~+85℃ |
| Insulation resistance MΩ | 2000 |
|
Number of contact |
2 |
3 |
4 |
5 |
6 |
7 |
9 |
12 |
|
Male contact face view |
 |
 |
 |
 |
 |
 |
 |
 |
|
Rated current (A) |
25 |
25 |
25 |
10 |
25 |
10 |
5 |
5 |
|
Contact diameter(mm) |
2.25 |
2.5 |
2.5 |
1.5 |
φ2.5X4 |
1.5 |
1 |
1 |
|
Rated voltage(AC.V) |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
400 |
|
Test voltage(AC.V)1 min |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1200 |
|
Contact resistance (mΩ) |
1 |
1 |
1 |
2.5 |
1 |
2.5 |
5 |
5 |
|
Termination |
solder/screw |
solder/screw |
solder/screw |
solder |
solder |
solder |
solder |
solder |
|
Wire size (mm² /AWG) |
≤4/11 |
≤4/11 |
≤4/11 |
≤2/14 |
≤4/11 |
≤2/14 |
≤0.785/18 |
≤0.785/18 |
|
Wire size for screw termination (mm² /AWG) |
≤1.5/15 |
≤1.5/15 |
≤1.5/15 |
/ |
/ |
/ |
/ |
/ |
|
Number of contact |
2 |
3 |
4 |
5 |
7 |
7B |
8 |
|
Male contact face view |
|
|
|
 |
|
|
 |
|
Rated current (A) |
25 |
25 |
25 |
10 |
10 |
5 |
5 |
|
Contact diameter(mm) |
2.5 |
2.5 |
2.5 |
1.5 |
1.5 |
1 |
1 |
|
Rated voltage(AC.V) |
500 |
500 |
500 |
500 |
500 |
400 |
400 |
|
Test voltage(AC.V)1 min |
1500 |
1500 |
1500 |
1500 |
1500 |
1200 |
1200 |
|
Contact resistance (mΩ) |
1 |
1 |
1 |
2.5 |
2.5 |
5 |
5 |
|
Insulation resistance (MΩ) |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
